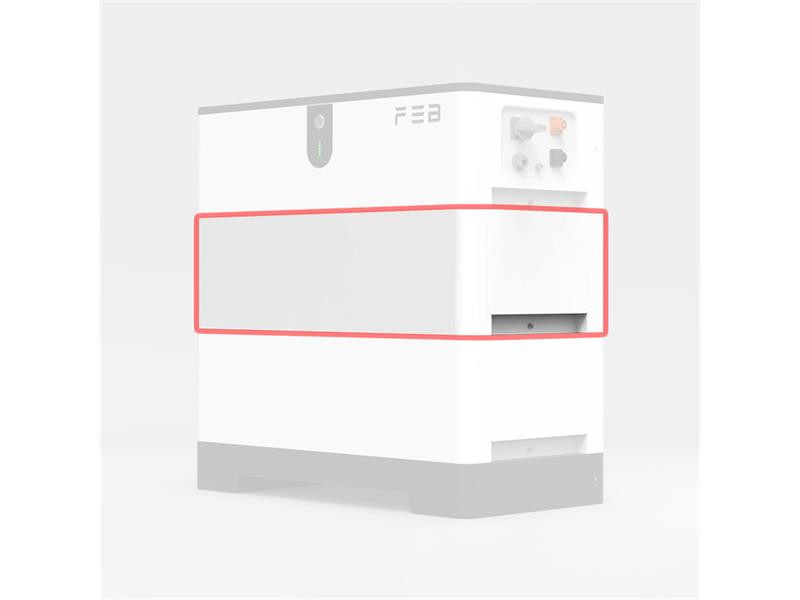

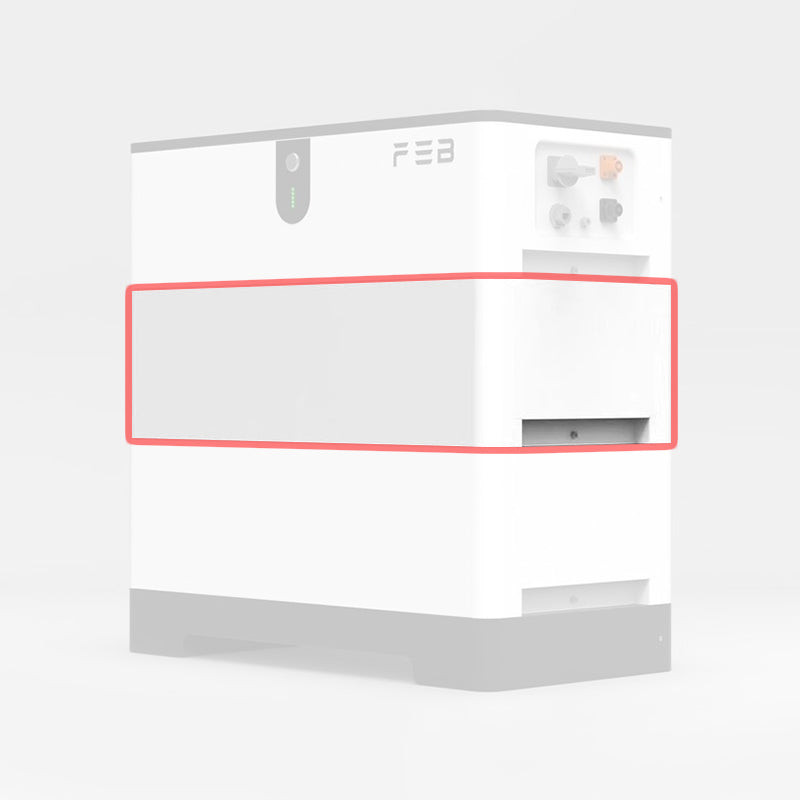

Battery modul FEB HV5120-S 5,12kWh

SEPARATE BATTERY MODULE WITHOUT CONTROL UNIT
THIS IS NOT A COMPLETE BATTERY SYSTEM!

Additional battery module 5.12 kWh to increase the capacity of the FEB HV5120-S system up to a total of 8 cells (40 kWh).


Technical parameters

- max. number of batteries in series: 8
- max. number of parallel systems: 8
- nominal capacity: 5.12 kWh
- nominal voltage: 102.4V DC
- voltage range: 91.2 – 115.2 V DC
- battery type: Li-ion (LFP)
- charging current: 25 A
- discharge current: 25 A standard / 40 A maximum
- service life: more than 6000 cycles / 15 years
- communication: RS-485 / CAN
- protection against: overvoltage, undervoltage, overheating, undercooling, current overload, short circuit
- work environment: indoor (interior)
- ambient temperature for charging: 0 to +50°C (cannot be charged in the cold!)
- ambient temperature for discharging: -20 to +50°C
- storage temperature: -20 to +50°C
- optimal operating temperature: +20 to +30°C
- air humidity: 5 – 95% (no condensation must occur)
- altitude: ≤ 2000 m
- cooling: by flowing air (passive)
- protection class: I
- certification: CE, UN38.3, IEC62619, IEC63056
- dimensions: 636 x 330 x 188 mm
- weight: 48 kg
- protection rating: IP55
