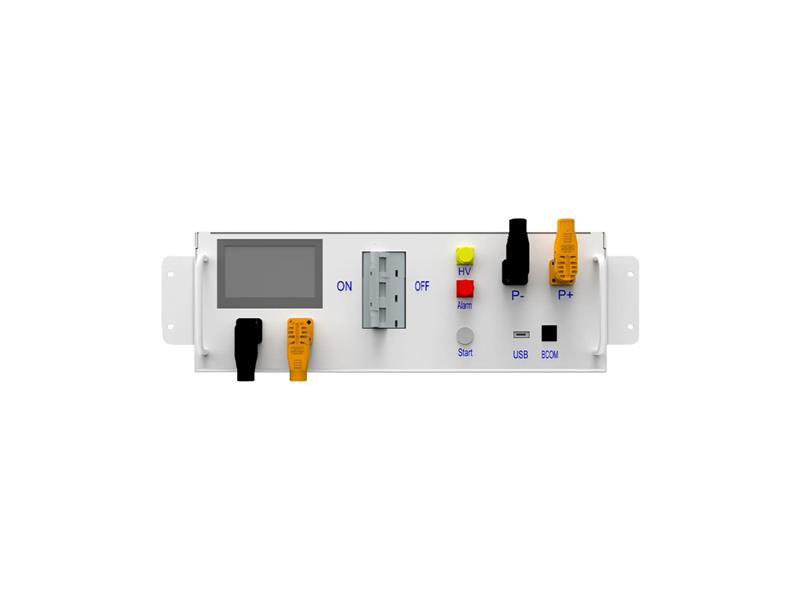

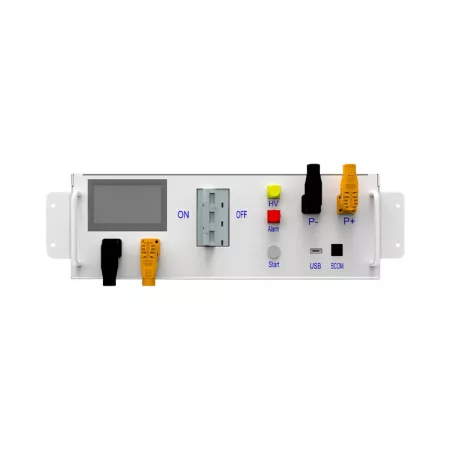

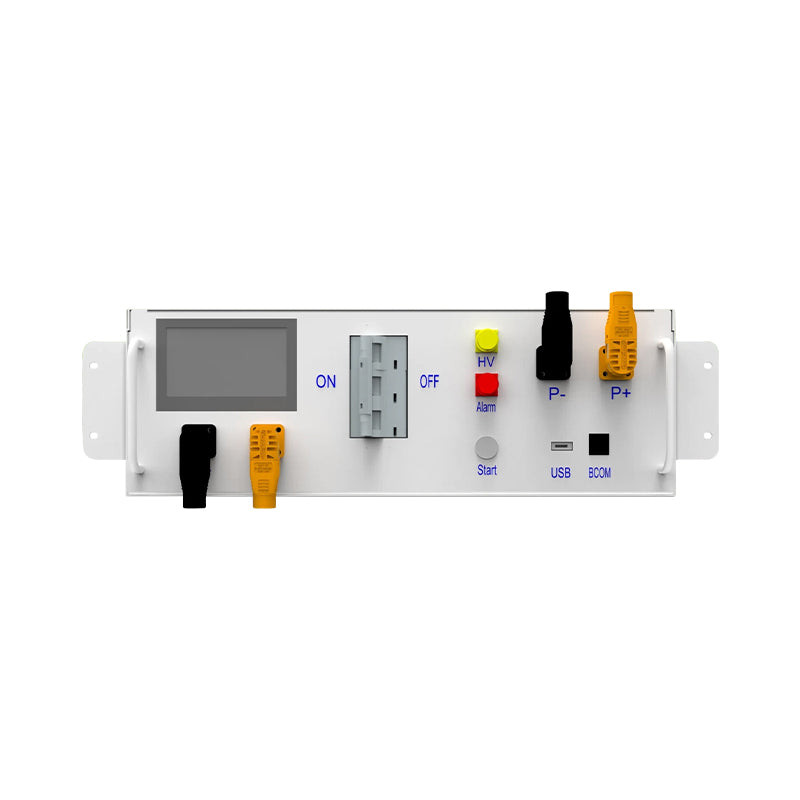

BMS Control box for BOS-G HV system

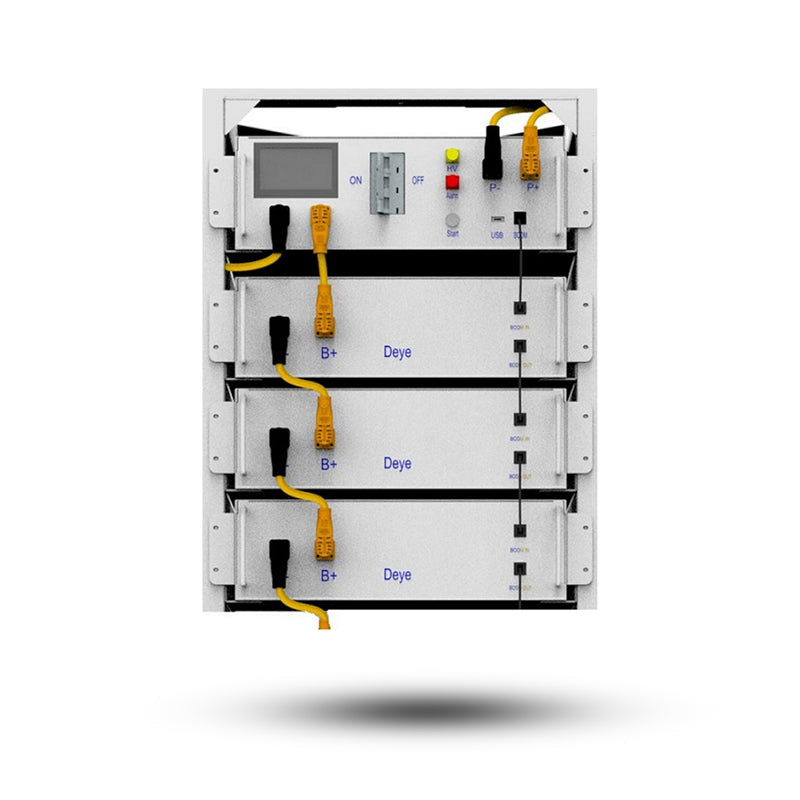

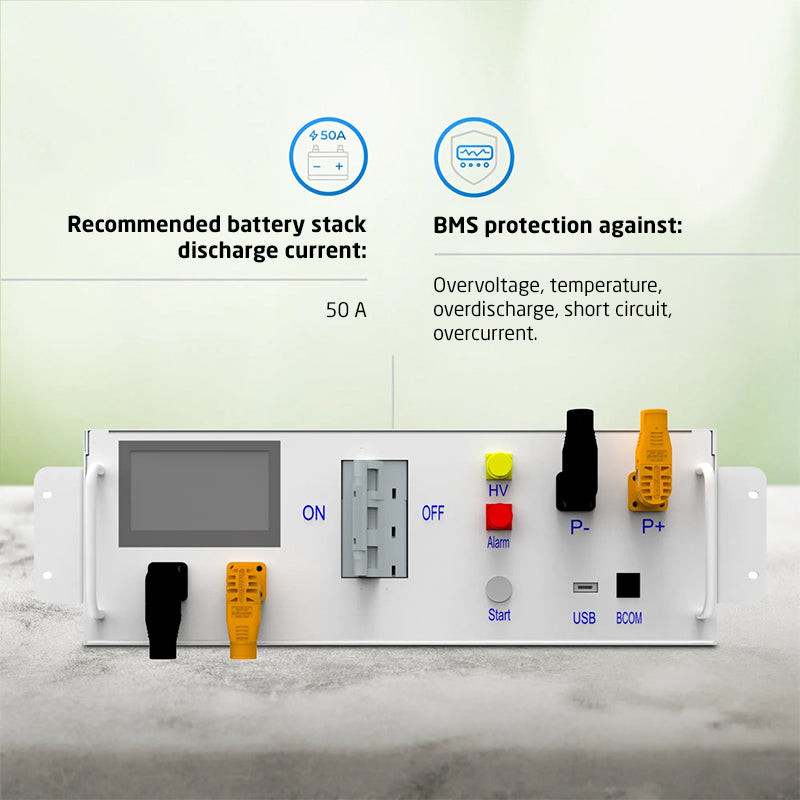

BMS control unit for BOS-G high-voltage battery systems with simple installation in a 19" rack. It has detailed management, high reliability and a built-in display. With its help, it is possible to create a battery cluster containing 3 to 12 batteries in series with a total capacity of up to 61.44 kWh. Protection functions including overdischarge, overcharge, overcurrent and too high or low temperature are a matter of course. The system automatically charges, monitors the state of charge and capacity, balances voltage and current across all connected battery modules to ensure optimal operation of the entire storage.

ATTENTION! This is a separate control unit without batteries! Batteries must be purchased separately!


Product parameters

Control unit for high voltage system BOS-G
Operating voltage 120 to 750 VDC
Maximum charging and discharging current 125 A
Easy quick installation in a 19" rack
Supports 3 to 12 battery modules


Technical parameters

System type: high voltage
Operating voltage: 120 to 750 VDC
Max. charging and discharging current: 125 A
Supported number of modules: 3 to 12 pcs
Battery connection: in series
Compatible battery series: BOS-G
Design: rackmount
Use: indoor
Communication interface: RS-485, USB, Wi-Fi, CAN
Operating temperature: -20°C to +55°C
Weight: 15.5 kg
Dimensions: 565 x 440 x 150 mm
Protection rating: IP20
