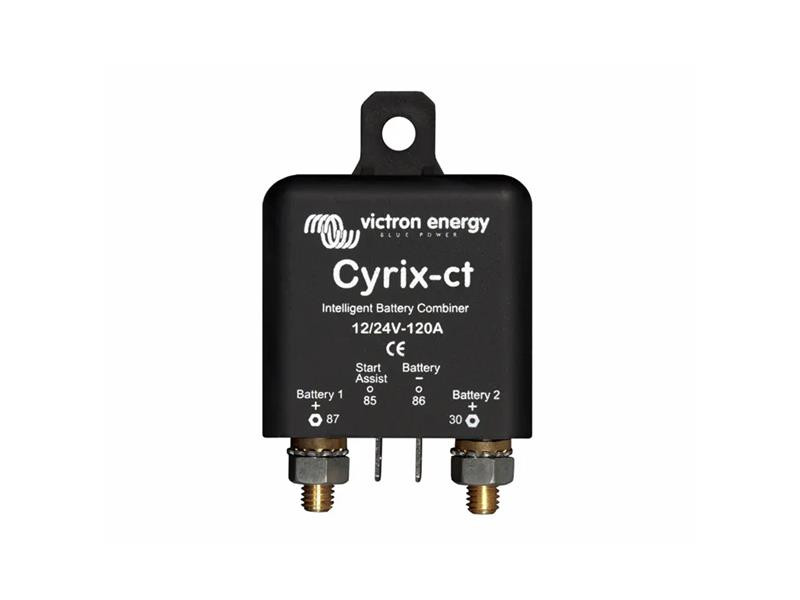

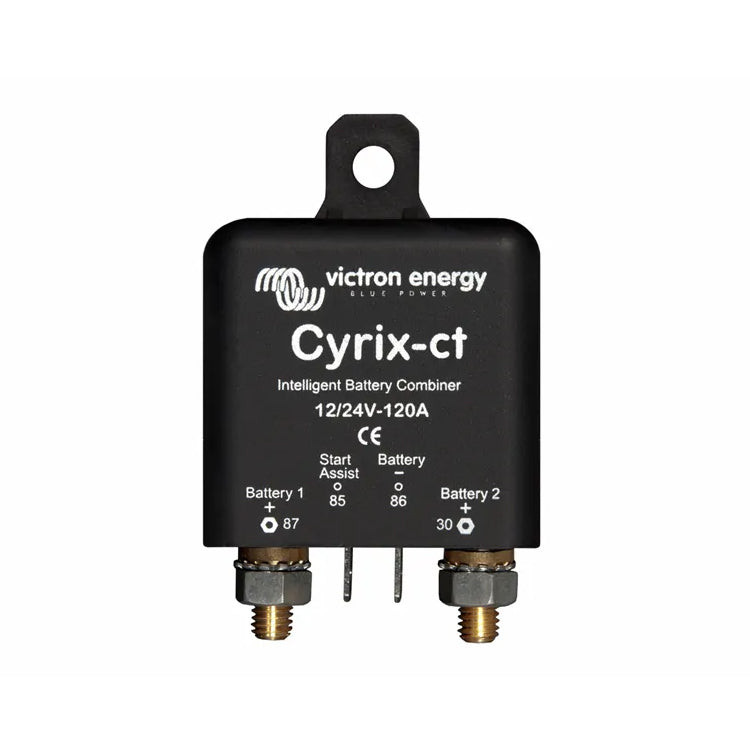

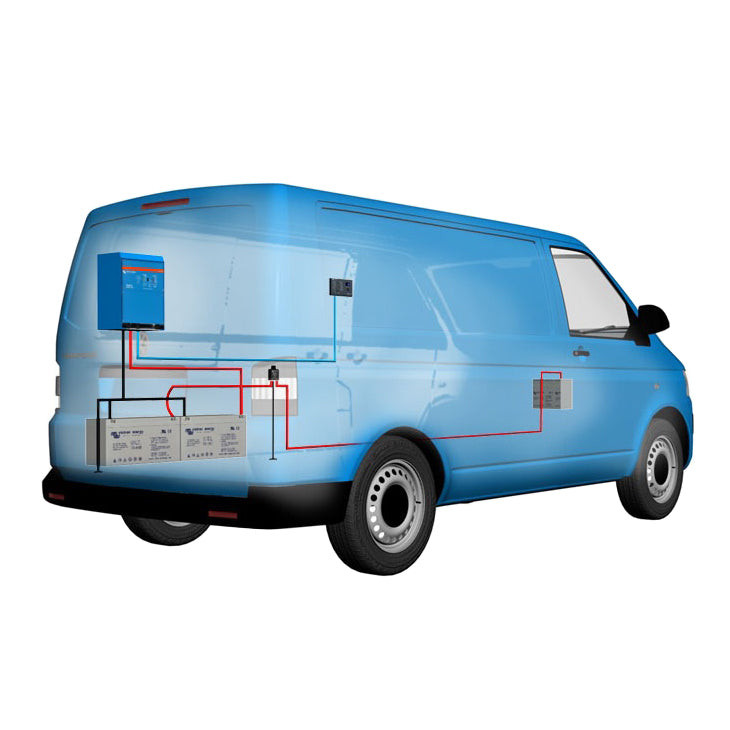

The intelligent Cyrix-ct battery connector controls the charging and disconnection of the starter and operating batteries. If one of the batteries reaches 13.0 V (26 V) for 10 minutes or 13.8 V (27.6 V) for 4 seconds, the Cyrix-ct batteries connect and charge both batteries simultaneously to full capacity. condition. When one of the batteries drops below 12.8 V (25, 6) for 10 minutes or 11.8 (23.6) for 4 seconds, the batteries are disconnected from each other. This connection and disconnection works in both directions. Batteries can be of different capacities, types and designs. It is assumed that each battery powers its own appliances.

The Cyric-ct model is equipped with thermal protection. In the event of high ambient temperature or excessive charging current, it will switch off. As soon as the temperature drops, the Cyrix-ct activates automatically.

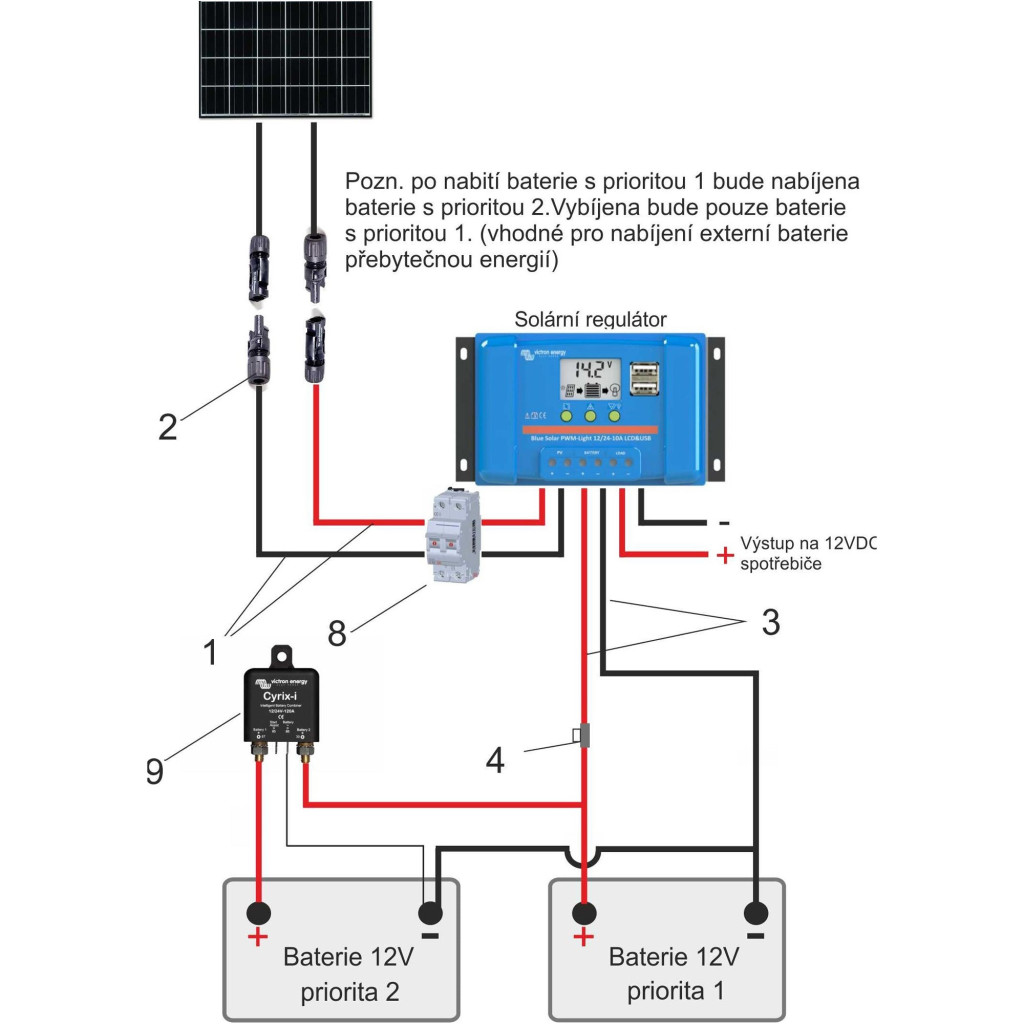

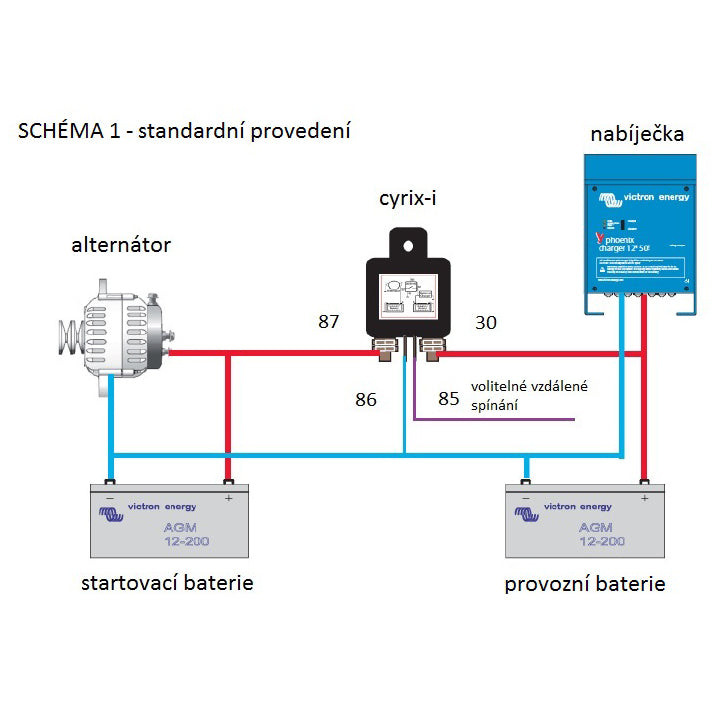

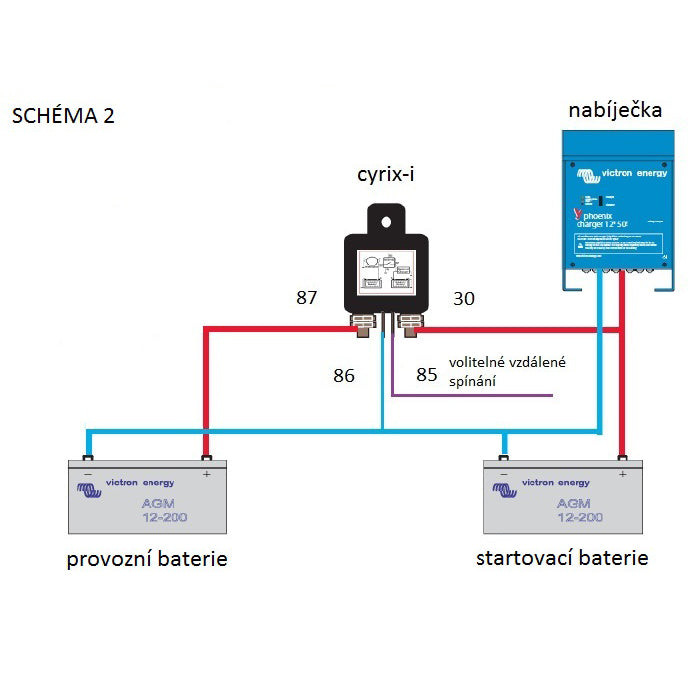

You will find the basic connection options in the "Wiring diagrams" file attached below.

Product parameters:

Operating voltage: 12 or 24 V (autodetection)
Maximum alternator current: 150 A
Maximum continuous current in the system: 120 A
Current consumption when the device is not switched on: 4 mA
Connection voltage (delayed approx. 10 minutes): 13 V / 26 V
Connection voltage (with a delay of approx. 4 seconds): 13.8 V / 27.6 V
Disconnect voltage (approximately 10 minutes delay): 12.8 V / 25.6 V
Disconnection voltage (with a delay of approx. 4 seconds): 11.8 V / 23.6 V
Disconnection overvoltage: 16 V (32 V)
Dimensions without outlets: 45 x 45 x 45 mm
Housing material: black plastic
Degree of protection: IP54
