Fém, fa és elektromos érzékelő UNI-T UT387B

Description

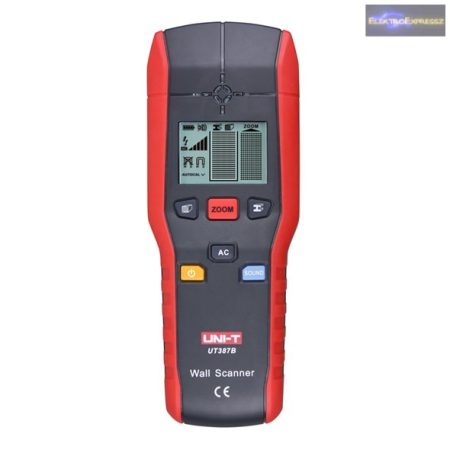

The UNI-T UT387B detector is a quality device with a good price/performance ratio, which can be used on every construction site and during reconstruction. It is used mainly for the detection of wooden beams, metal profiles and water pipes and electrical conductors with el. AC voltage in masonry walls, ceilings and floors, to facilitate installation work. The device includes a graphic LCD display, which allows the display of many states and operating modes, as well as a buzzer and red and green LEDs. Different modes of automatic user calibration. Option to select silent mode. A very useful tool for craftsmen, bricklayers and floorers.


Product parameters :

- designed for detection of objects in masonry walls
- recognizes the change in density of material, including wood in the wall
- detection of ferrous and non-ferrous metals
- detection of electrical wires with el. voltage
- automatic user calibration
- low battery indication
- automatic shutdown when idle
- ZOOM function

Technical parameters :


- maximum detectable distance of ferrous metals: 80mm (with the volume of the object at least 3cm in diameter)
- maximum detectable distance of non-ferrous metals: 80mm (aluminum at a volume of 30 x 2 x 2cm)
- maximum detectable distance of electrical conductors under AC voltage: up to 50mm
- maximum detectable distance of wood: 20mm (at a volume of 20 x 16 x 4cm, depending on its humidity)
- LCD display for orientation display of distance, magnetism, electric field signal
- signaling of working states by buzzer and red and green LED diode
- silent mode
- automatic calibration
- low battery indication: when dropped to 7.2V
- battery: 9V (6F22)
- automatic shut-off when idle: after approx. 5 minutes
- working temperature: 0 ° C to + 40 ° C
- working temperature for guaranteed accuracy: + 18 ° C to + 28 ° C at relative humidity less than 75%
- storage temperature: -10 ° to + 50 ° C
- altitude: less than 2000m
- product weight: 274 g
- product dimensions: 220 mm x 83 mm x 30 mm
- product color: red and gray
