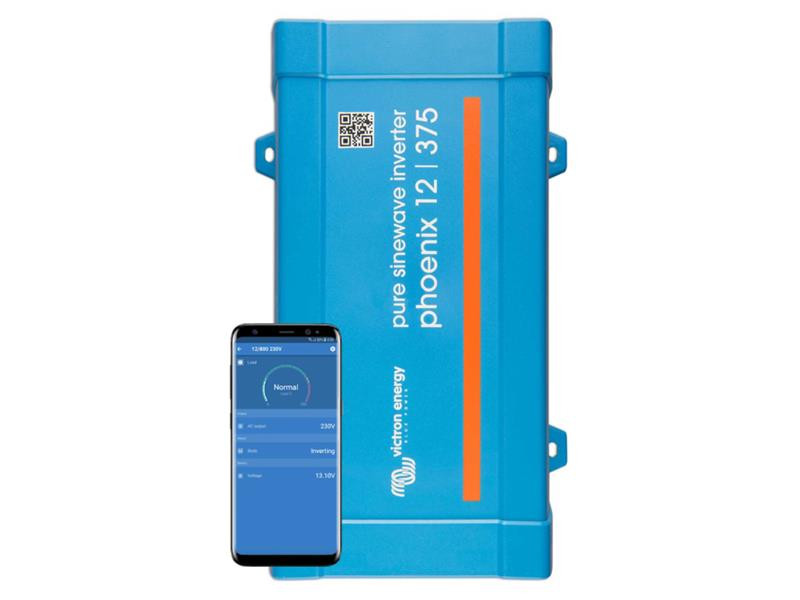

Voltage converter SINUS Victron Energy Phoenix VE.Direct 375VA 12V

Voltage converter SINUS Phoenix 375VA 12V VE.Direct
The drive features a rugged toroidal transformer that has proven its reliability in Victron Energy drives for many years.
The inverters are short - circuit proof and protected against overheating, whether due to overload or overload
high ambient temperatures.

This inverter is fully configurable - it is a completely unique function, where you can set the following parameters using a PC:
• Low and high battery alarm and reset level
• Inverter shutdown level at low and high battery voltage and reset level
• Output voltage 220/230 / 240V
• Frequency 50 Hz or 60 Hz
• ECO mode enable / disable sensitivity setting (setting the level when the drive "sleeps" and when it "wakes up" again)

Monitoring is also available:
• input and output voltage and current, temperature, alarms

High starting power
Needed to start loads such as power converters for LED lamps, halogen lamps or power tools.

ECO mode
In ECO mode - when the load power drops below the preset value, the inverter switches to standby mode (it sleeps and the inverter's own consumption is then only about 1W). In standby mode with very low self-consumption, the inverter will then switch on regularly for a short time (adjustable parameter, default: every 2.5 seconds). If the load power exceeds the preset value, the inverter switches on again. Thanks to this function, you save a large amount of energy that the inverter would otherwise consume for its operation.

VE.Direct communication port that can be connected to:

• Computers (VE.Direct to USB cable required)
• Apple and Android smartphones, MacBooks and other devices (VE.Direct Bluetooth dongle required)

Free software
Current SW versions are available on our software page

Remote on / off, LED diagnostics - see manual.

Cables for connection to the battery are not included, we will be happy to make the necessary lengths for you. So do not hesitate to contact us.

Technical parameters:
Continuous output power at 25 ° C (VA): 375
Continuous active power at 25 ° C / 40 ° C (W): 300/250
Peak active power (W): 700
Weight (kg): 3.0
Dimensions h x w x d (mm): 86x165x260

Technical specifications can be found in the downloadable documents below
