Súlyérzékelő YZC-131 1kg terhelésmérő Arduino

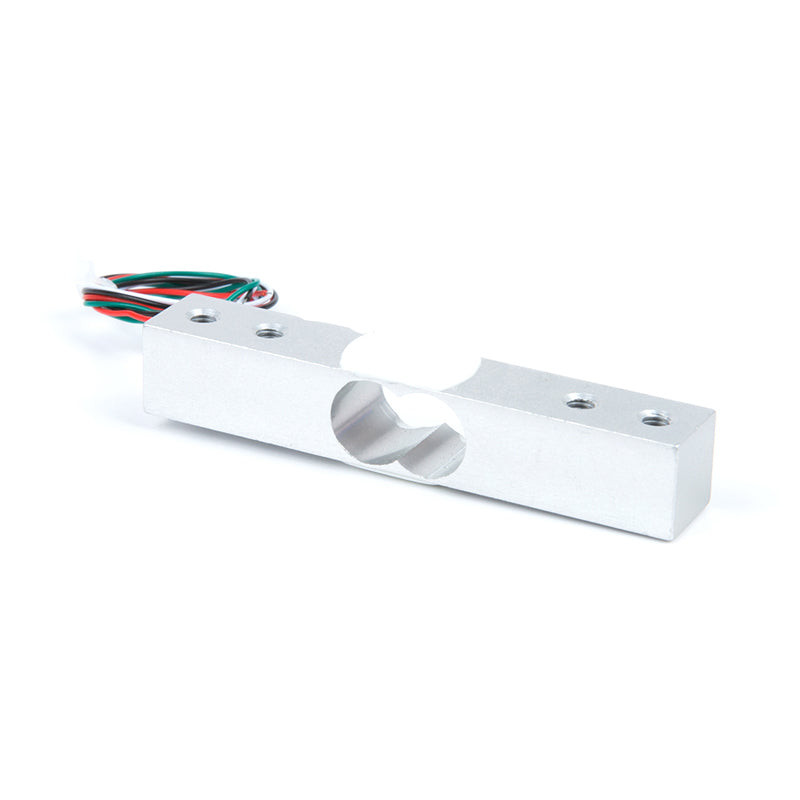

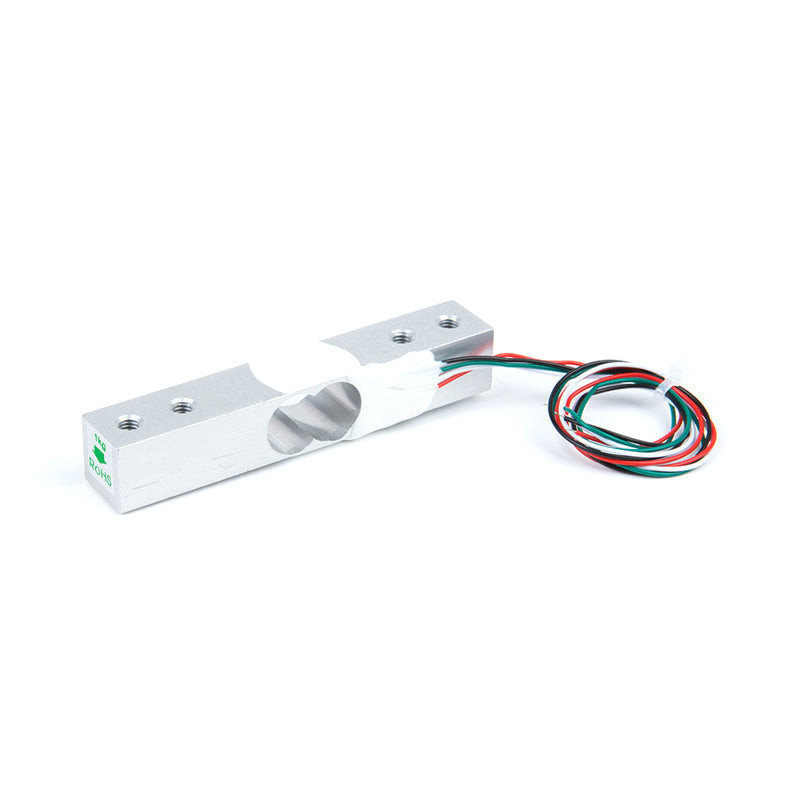

Weight sensor with a measurement range up to 1kg, commonly found in kitchen scales. The sensor has 4 threaded holes for mounting on a base. Install the sensor so that the green arrow points towards the base.. Technical parameters:. - load: 0 - 1 kg. - recommended supply voltage range: 5 - 10 V DC. - red wire: power +. - black wire: power -. - white wire: output signal -. - green wire: output signal +. - input impedance: 1066 ± 10 % ?. - output impedance: 1000 ± 10 % ?. - hysteresis: 0.03 % FS. - material: aluminum. - wire length: 250 mm. - operating temperature range: -20 ~ 40 °C. - dimensions: 12.5 x 12.5 x 75 mm. - weight: 26 g. Package: 1 piece
