Voltage converter Victron Energy 1200VA 24V VE.Direct

Voltage converter SINUS Phoenix 1200VA 24V VE.Direct
Victron Energy 24V/1200VA VE.Direct. Fully programmable 24V/1200VA pure sine wave inverter with toroidal transformer, built-in VE.Direct interface and ECO mode.
The Victron Energy voltage converter is an efficient and reliable voltage converter built on a proven and field-tested platform. The inverter incorporates a robust toroidal transformer that has proven its reliability in Victron Energy inverters for many years.

Product parameters:

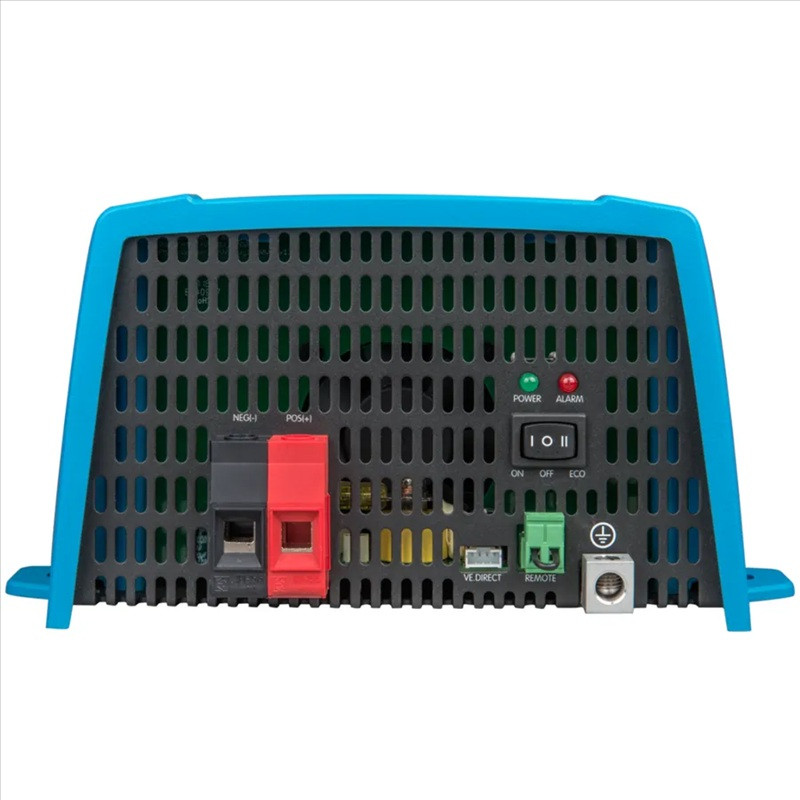

- Easily accessible terminals: installation is easier than ever because terminals are now more accessible to the installer.

VE.Direct:

The VE.Direct port can be connected to:
- computer (VE.Direct to USB interface cable required)
- Smartphones, tablets, MacBooks and other Apple and Android devices (VE.Direct Bluetooth Smart dongle required)

Fully configurable:
- Low battery alarm triggering and level reset
- Low battery shutdown and restart levels
- Dynamic shutdown: load-dependent shutdown level
- output voltage 210 - 245 V
- frequency 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sensing level

Tracking:
- Input and output voltages, % load and alarms

Proven reliability:
- Full bridge and toroidal transformer topology has proven its reliability over many years. The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High starting performance:
- Required to start loads such as inverters for LED bulbs, halogen bulbs, refrigerators or power tools.

ECO mode:
In ECO mode, the inverter switches to standby mode when the load drops below a preset value. In standby mode, the inverter turns on for a short period of time every 2.5 seconds (adjustable). If the load exceeds the preset level, the inverter will remain on.

Remote on/off:
The remote switch can be connected to the two-pole connector or between the battery plus and left contact of the two-pole connector.

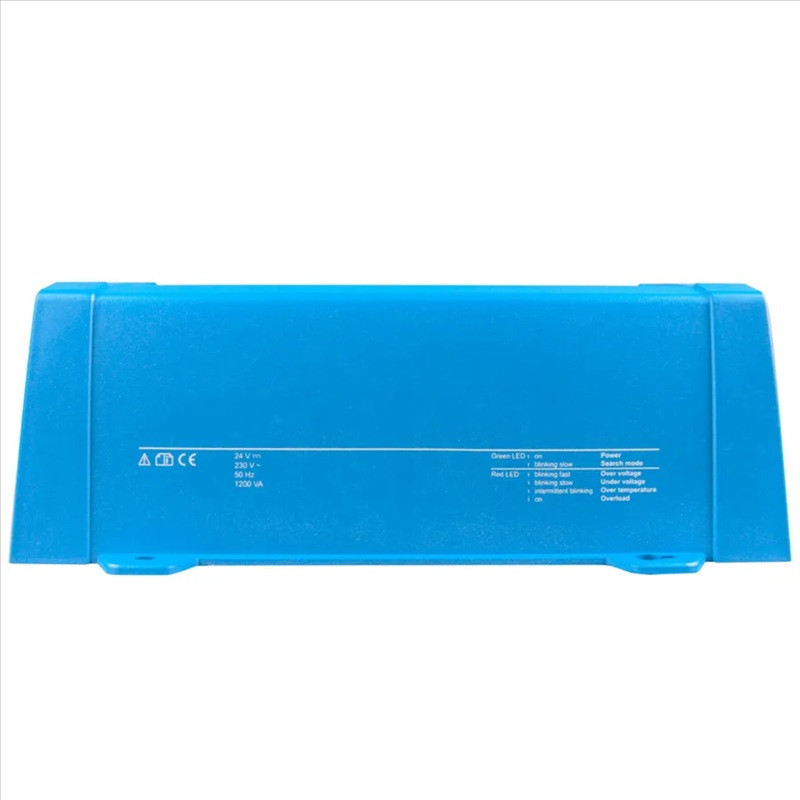

LED diagnostics:
The status LEDs can be used to diagnose the device, see instructions for use.

Victron Connect:
The VictronConnect application is used to monitor, control and configure the inverter. The app can be installed on a phone, tablet or computer. The app is available for Android, iOS, Windows and macOS. The app communicates either via Bluetooth or via a USB interface with the VE.Direct port.


Technical parameters:

- 230 V AC +/- 3% 50 Hz or 60 Hz +/- 0.1%.
- continuous power at 25 ºC: 1200 VA / 1000 W
- Peak power: 2200 W
- max. efficiency: 91%
- self-consumption at zero load: max 8 W
- self-consumption in ECO mode: max 1.5 W
- 230 V AC connection: Schuko (CEE 7/4)
- Operating temperature range: -40 to +65ºC (fan-assisted cooling)
- Humidity (non-condensing): max. 95%
- Protection class: IP21
- weight: 7.4 kg
- Dimension: 117 x 232 x 327 mm
