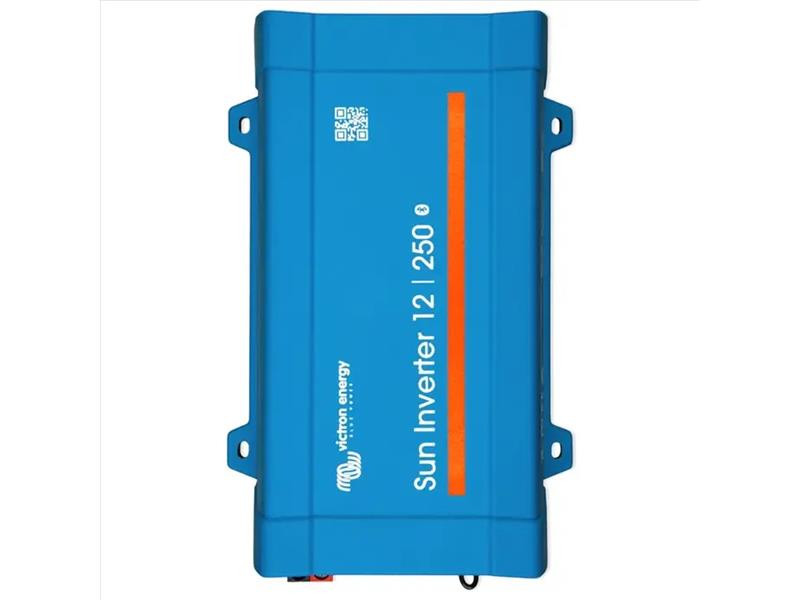

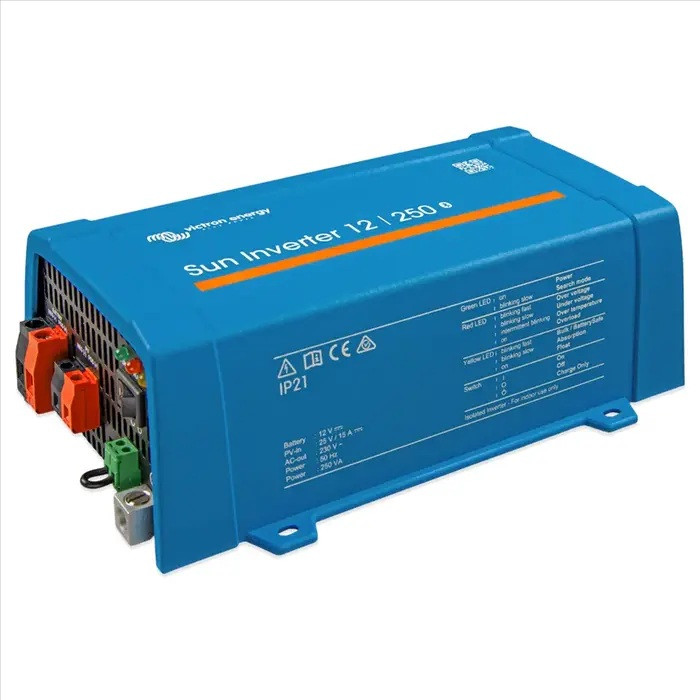

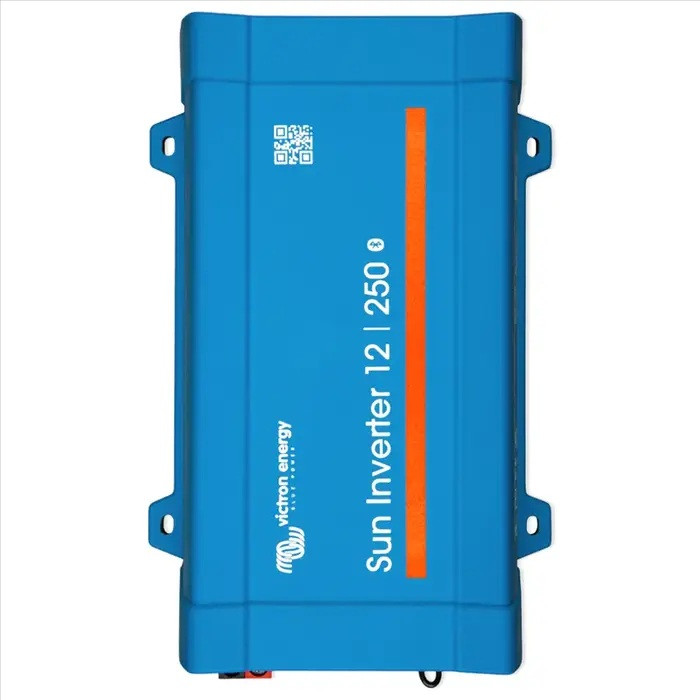

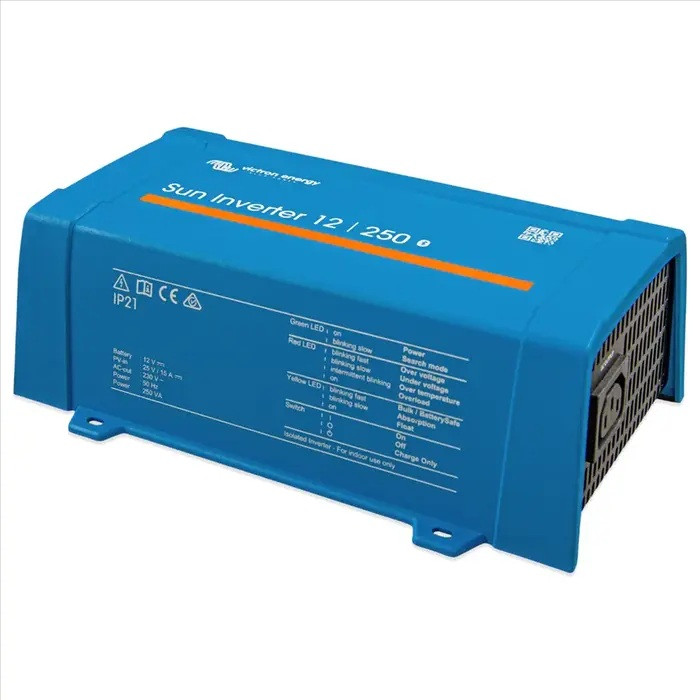

Victron Energy Sun Inverter 12V/250A-15 IEC

The Victron Energy voltage converter is an efficient and reliable voltage converter built on a proven and field-tested platform. The inverter incorporates a robust toroidal transformer that has proven its reliability in Victron Energy inverters for many years.

Key Features:

High starting power:
Required to start loads such as inverters for LED bulbs, halogen lamps or power tools.

ECO mode:
In ECO mode, the inverter switches to standby mode when the load falls below a preset value (min. load: 15 W). Once in standby mode, the inverter will switch on for a short period of time (adjustable, default: every 2.5 seconds). If the load exceeds the preset level, the inverter will remain on.

PWM solar charger:
The solar charger provides battery charging with energy obtained from your solar panels. The charging algorithm is programmable.

Remote on/off:
The Phoenix Inverter Control VE.Direct Remote panel (not included) can be used to turn the inverter on or off remotely. Alternatively, the remote switch can be plugged into the two-pole connector or between the battery plus and the left contact of the two-pole connector.

LED diagnostics:
Please refer to the manual for a description of each condition.

Bluetooth:
Inverter and solar charger parameters can be read, monitored and configured via Bluetooth
VictronConnect app.

VE.Direct communication port:
The VE.Direct port can be used to connect to a GX device, GlobalLink 520 for monitoring through the VRM portal or to connect to a computer for monitoring or configuration using the VictronConnect app.

Monitoring via the VictronConnect app or GX device:

Inverter input and output voltages and % load
Solar energy, voltage and current
Operating status and alarms
Fully configurable via the VictronConnect app:

Low battery voltage alarm triggering and level reset
Low battery shutdown and restart levels
Dynamic shutdown: load-dependent shutdown levels
Output voltage 210 - 245 V and frequency 50 Hz or 60 Hz
ECO mode on/off and ECO mode sensing level
Battery charging current, algorithm and voltage
Temperature compensation for battery charging or low temperature level reduction
Load transfer to another AC power source: automatic transfer switch:
For our low power inverters, we recommend our Filax automatic transfer switch. Filax features a very short switching time (less than 20 milliseconds), so computers and other electronic devices yes
continue to operate without interruption.

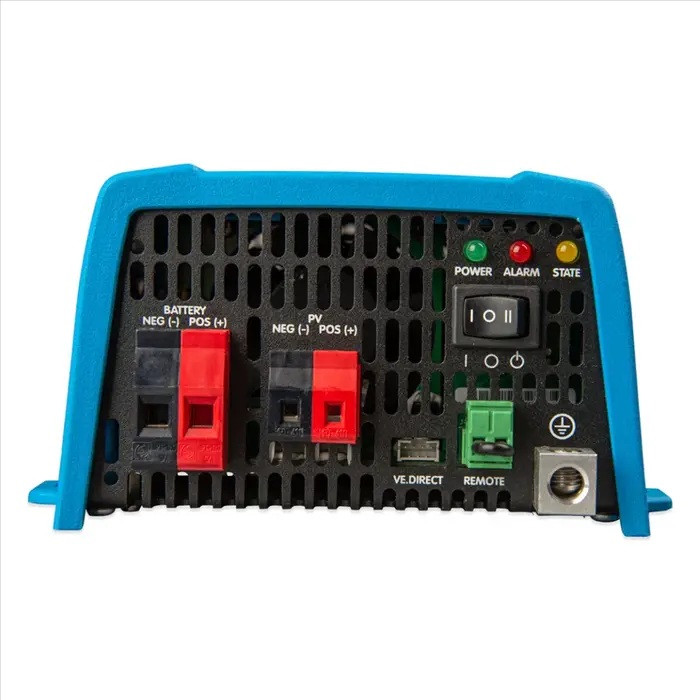

DC and PV connections with screw terminals:
No special cable terminals or tools are required for installation

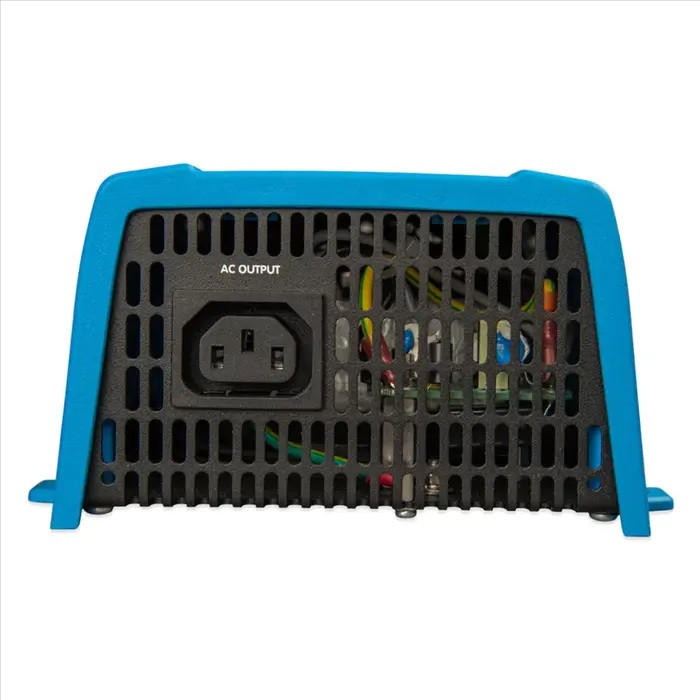

Available with IEC-320 socket:
IEC-320 plug included.

Specifications:

230 V AC +/- 3% 50 Hz or 60 Hz +/- 0.1%.
continuous power at 25 ºC: 250 VA / 200 W
Peak power: 400 W
max. efficiency: 87%
self-consumption at zero load: max 4.2 W
self-consumption in ECO mode: max 0.8 W
230 V AC connection: IEC-320 plug
Operating temperature range: -40 to +60 ºC (fan-assisted cooling)
Humidity (non-condensing): max. 95%
Protection class: IP21
weight: 2.4 kg
Dimension: 86 x 165 x 260 mm
