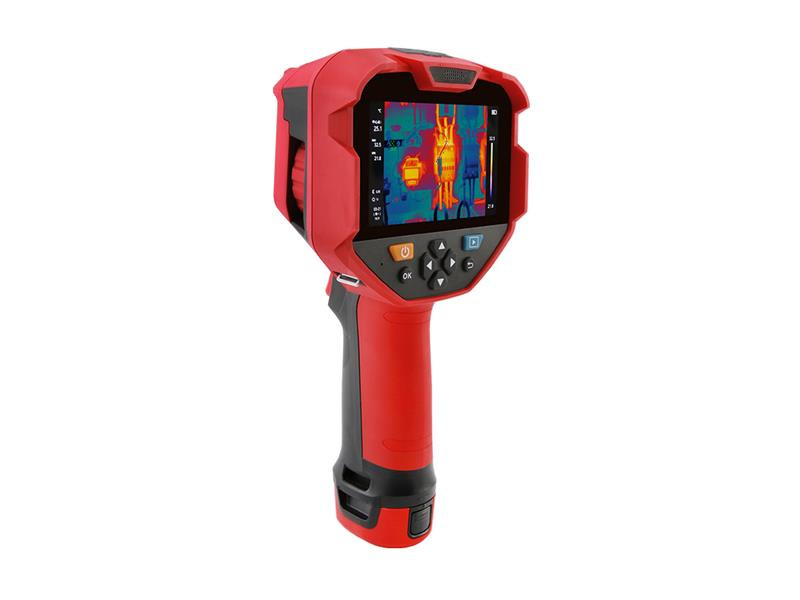

Thermal camera UNI-T UTi740H

The UNI-T UTi740H professional thermal imaging camera is specially designed for industrial use with a wide temperature range: -30℃~650℃. Its large 4.3” IPS display can clearly display IR resolution of 384 × 288 and 5MP digital camera. The professional manual focus lens can flexibly adjust the focal length and provide a high-quality image. The UTi740H camera also has other functions: such as WiFi function, isotherm, on-screen analyzer, etc. It is a perfect troubleshooting tool for many industrial applications.


Product parameters:

- 4.3″ IPS display (800×480)
- IR resolution: 384 × 288
- surface temperature measurement from -30 ℃ to 650 ℃
- object temperature analysis: 5 points/ 1 line/ 5 rectangles/ 5 circles
- digital camera resolution: 5 MP
- focus: manual focus
- digital zoom: 2x, 4x
- image modes: Thermal, Visual image, Fusion, PIP
- automatic monitoring of the highest and lowest temperature in the image
- high/low temperature alarm icon
- adjustable high and low temperature alarms
- blending of the thermal image with the visible image
- setting the system time and date
- 7 color swatch palettes for thermal image transposition: (White, Black, Red, Ironbow, HC Rainbow, Rainbow, Lava)
- isotherm: 2 (automatic / manual)
- Wi-Fi connection via mobile application
- PC software: real-time image analysis and projection
- save images on the supplied 32GB micro SD card
- removable Li-ion battery 5200mAh / 3.7 V
- USB-C connector for charging the battery, transferring images to a PC, and projecting images
- protection: IP54
- mounting thread ¼" on the tripod
- 2m drop resistant


Technical parameters :

- total infrared resolution: 384 x 288 pixels
- temperature measurement range: -30℃ to 500℃ (-22℉ to 1202℉)
- temperature measurement accuracy: -10℃ to 650℃ (whichever is greater (ambient temperature 25 °C)
- temperature measurement unit: ℃ (default), ℉, K
- field of view (FOV): 28° x 21°
- thermal sensitivity (NETD): < 60mK
- IFOV (Instantaneous Field of View): 1.3 mrad
- frame rate: ≤ 25 Hz
- measurement in the infrared spectral band: 8 μm to 14 μm
- focus mode: manual
- emissivity: 0.01~1.00 adjustable (default 0.95)
- digital zoom: 2x, 4x
- power supply: removable Li-ion battery (3.7 V/ 5200 mAh)
- operating time per charge: about 5 hours (with WIFI turned off)
- image/video storage format: BMP
- certification: CE, FCC, UKCA, ROHS
- thermal imaging sensor: uncooled vanadium oxide
- thermal imaging sensor pixel size: 17 μm
- net weight: 806 g
- product dimensions: 266 × 126 × 136 mm
- standard carton size: 400 x 185 x 345 mm
- weight of standard GW carton packaging: 4.13 kg
- standard accessories: Micro SD card, USB type C cable, manual, Li-ion battery, hand strap
