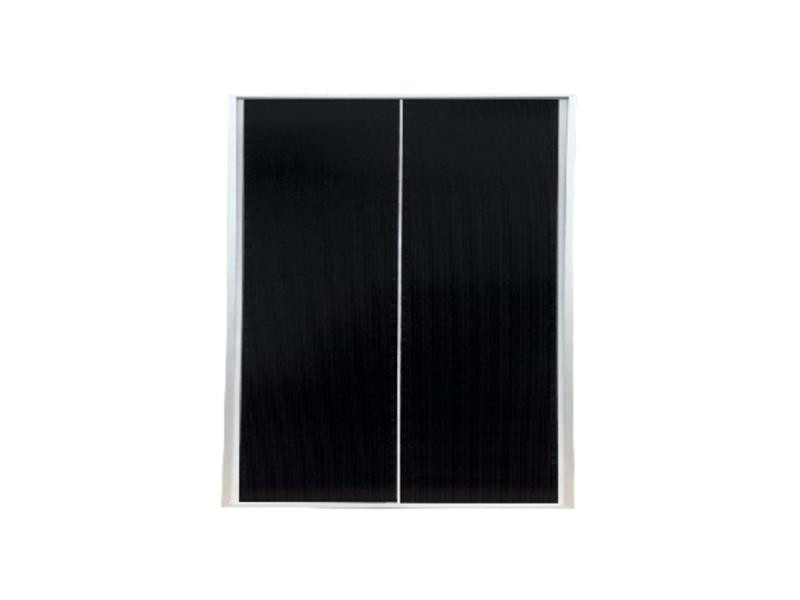

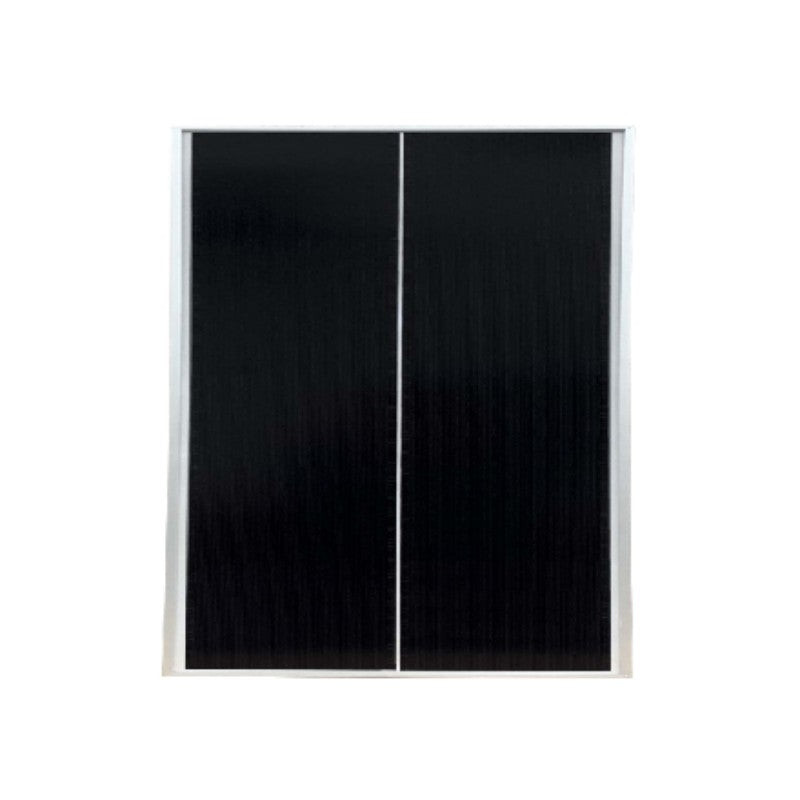

Solar panel SOLARFAM 12V/ 40W monocrystalline 480x450x25

Monocrystalline solar panels are suitable for domestic and industrial use as well as for places without electricity, such as cottages, caravans, gardens, etc. They consist of cells made from a single piece of monocrystalline silicon, which is produced by hot drawing the crystal... The main advantage of monocrystalline panels is the lower temperature coefficient. In practice, this means that if a panel gets hot in warm weather, then a monocrystalline panel will produce more electricity than a polycrystalline panel, which has a higher temperature coefficient.

- Higher module efficiency and compact size.
- thanks to shingled technology, the hot-spot effect is suppressed, module failure rate is reduced and stability is increased.
- special interconnection method reduces internal resistance and provides better performance than traditional busbar interconnection.
- IP67-rated junction box, reliable cables and standard MC4 connectors increase stability.

- Rated power: 40 W
- Type: monocrystalline
- module efficiency: 22%
- Maximum current (Impp): 2.21 A
- Maximum supply voltage (Vmp): 18.15 V
- Voltage at no-load (Voc): 21.75 V
- Short circuit current (ISC): 2.34 A
- Maximum system voltage: 500 V
- Output tolerance: +3%
- Cable: 750mm / 2.5 mm2
- Connector type: MC4 / MC4 compatible
- Module design: Aluminum frame / glass / EVA / back layer
- Protection rating: ≥IP67
- working temperature: -40℃~+80℃
- Module size: 480 x 450 x 25mm
- weight: 2.3kg
