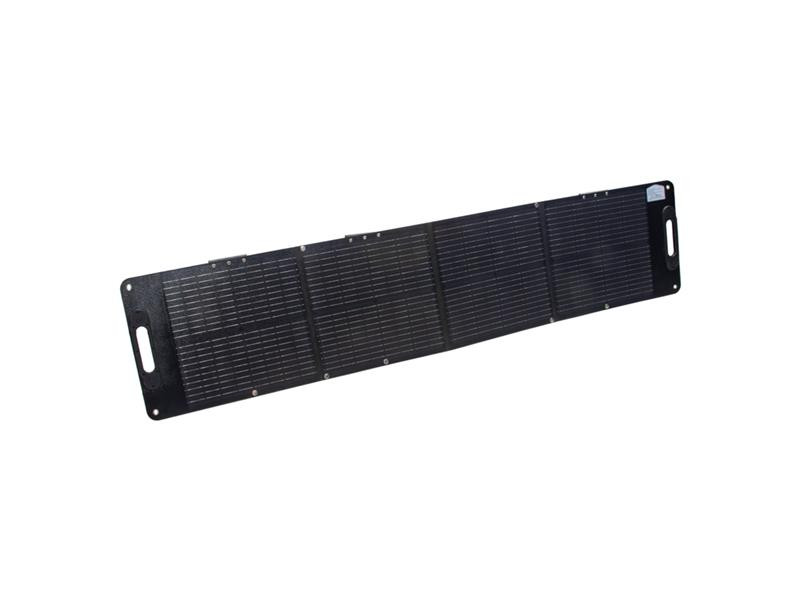

Solar panel CARCLEVER 35so120L, charger 120W

The foldable solar panel with reinforced structure (full lamination) is designed for charging 12V batteries, battery charging stations, laptops, mobile phones, power banks and other devices with a USB connector.

The solar panel is also suitable for batteries in passenger cars and smaller commercial vehicles.

Foldable design: comes with a compact hard case; can be folded as a briefcase for easy transport, great for camping, hiking and other outdoor activities.

Connecting to the battery is quick and easy, using the included cable with battery terminals.

USB connector for phone connection, DC 5.5mm connector for other accessories.

Depending on the size of the DC connector, it can be used with various portable emergency power supplies.

High energy conversion efficiency: Monocrystalline high efficiency solar cells convert up to 22%; they work even at a low light level of approx. 40,000 lux.

TIR-C technology: intelligent IC automatically resets the charger to keep the device charged at maximum power; eliminates the hassle of repeated plugging and unplugging.

quick connection to the battery via terminals
practical pocket for storing accessories (cables)
USB connector for phone charging, etc.
1 x 5.5mm DC5521 connector for connecting charging cables

Technical parameters:

maximum power (Pmax): 120 Wp
working voltage (Vmp): 18.4V
open circuit voltage (Voc): 22V
maximum current (Imp): 6.25A
short circuit current (Isc): 7.04A
1x USB output 5V 2.4
1x USB-A(QC3.0 ) Output: 5V/2.4A, 9V/2A, 12V/1.5A
1 x 5.5mm DC5521 connector for connecting charging cables
folded panel dimensions: 505 x 403 x 54 mm
unfolded panel dimensions: 1815 x 403
solar cells: monocrystalline 156.75
working temperature: -40ºC - +70ºC
weight: 5000g

Accessories

cable for connection to the charging station (1.5m)
cable with battery terminals
cable with a set of connectors for charging laptops and other devices
