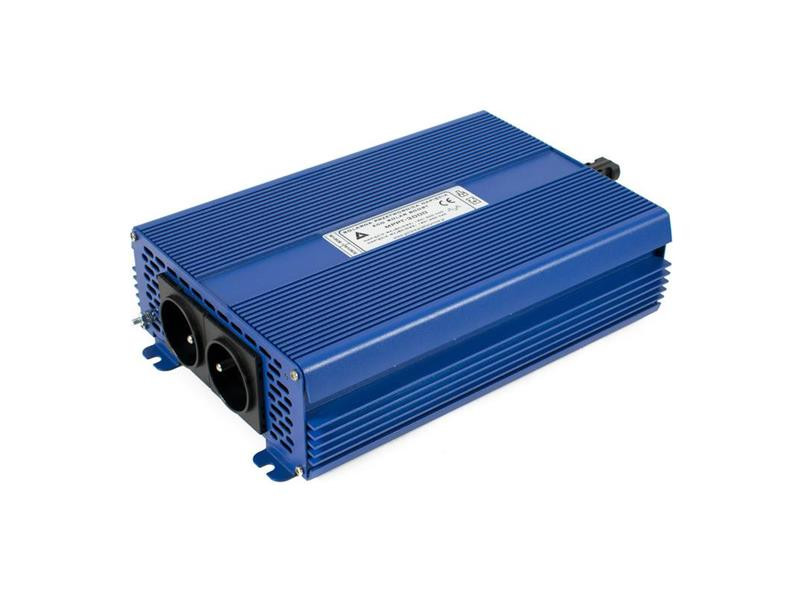

Solar inverter ECO Solar Boost MPPT-3000 3kW, Water heating

The ECO Solar Boost MPPT-3000 converter enables the direct use of photovoltaic panel systems to power resistance heating devices such as electric boilers, heaters, heating mats,water heating etc.

The system is simple, it only requires the connection of the appropriate number (4 to 9 pieces) of photovoltaic panels with an operating voltage of approx. 35V or a corresponding number of panels with a different voltage and an energy consumer, e.g. electric boiler, underfloor heating, etc.

The direct current generated in the panels, which cannot be fed directly to the heating devices, is converted into alternating current in the inverter, which can be used to power the heating devices.
The maximum power of the system is 3kW, the converter has priority output number "1" and dependent output number "2".

This allows you to connect two heating devices, for example two boilers, one of which will heat first and the second when the thermostat of the first one stops receiving energy from the inverter. Thanks to the implemented MPPT function, the inverter automatically adapts to the performance of the heater and sets its operating point so that the energy received from the photovoltaic panel system is maximum.

ATTENTION! Heating devices with electronic regulators can only be powered from output number 1.

The table shown in the photos shows how to choose the optimal heater depending on the power and voltage of the PV system. Choosing the optimal heater guarantees the highest efficiency of the PV system for heating water.
The actual performance of 230V heaters strongly depends on the PV system voltage, optimal heaters are marked in green, too weak in orange and too strong in red.

Technical parameters:

- input voltage [VDC]: 120 to 350 (VDC)
- output voltage [VAC]: 120 to 350 (VAC)
- maximum power: 3 kW
- MPPT function: YES
- connection of PV panels: series or series-parallel
- voltage curve at the output: modified sine
- VAC output #1: priority
- VAC output no. 2: dependent
- under/over voltage protection: YES
- thermal protection: YES
- overload protection: YES
- working temperature: -25 °C ~ + 55 °C
- efficiency: > 94%
- cooling: Active
- power connector: MC4
- output socket 230V: 2 x E (French with pin)
- case: Aluminum
- degree of protection (IP): IP21
- dimensions LxWxH [mm]: 290 x 190 x 80 mm
- weight (kg): 2.4 kg

Packaging: 1 pc

Package contents: 1pc Solar inverter ECO Solar Boost MPPT-3000 3kW (Panels and boiler are not included in the package)
