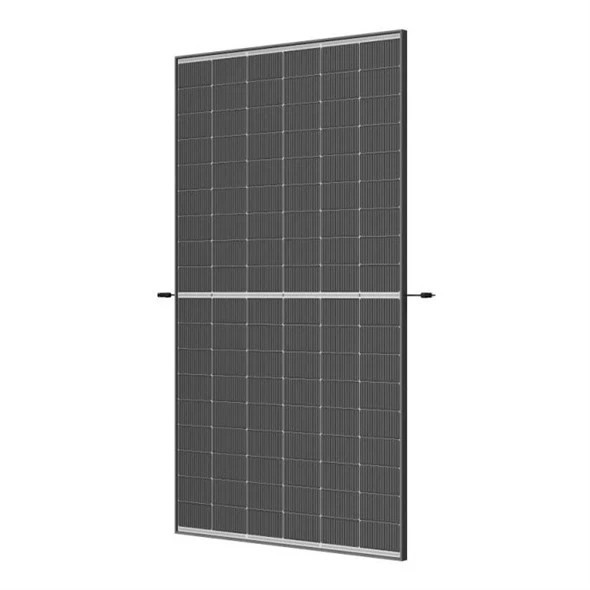

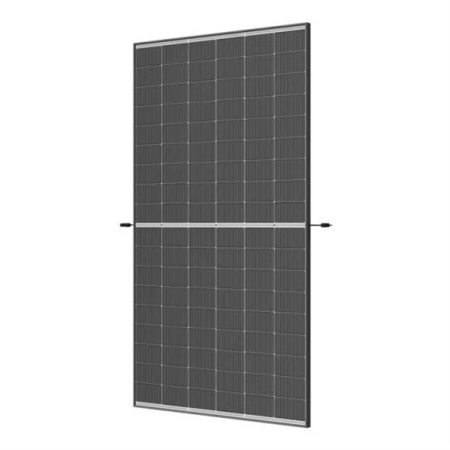

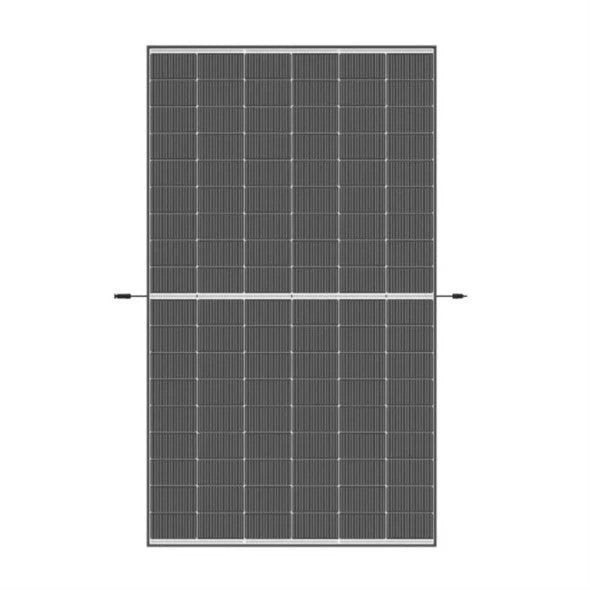

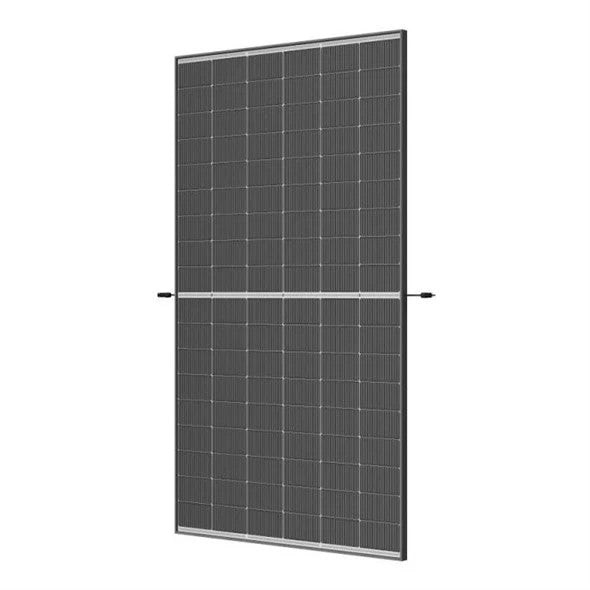

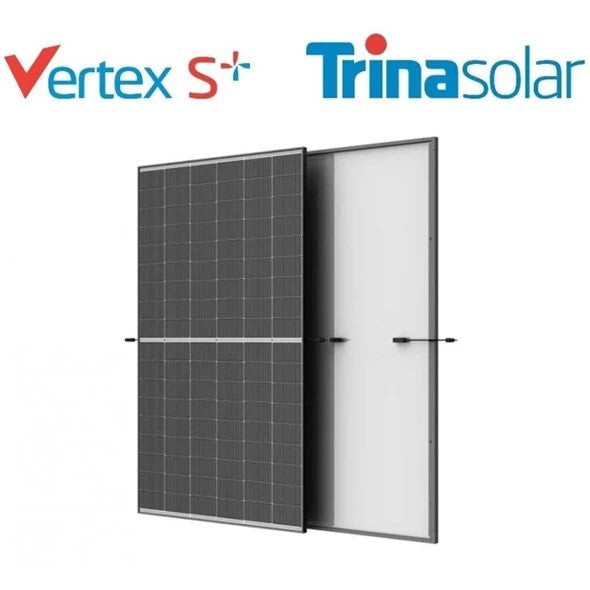

Solar Panel 455W Trina Solar TSM-NEG9R.28, Vertex S+ Dual Glass N-Type

The Trina 455 W photovoltaic module from the Vertex S+ series is made of monocrystalline cells with i-TOPcon type N technology. The perfect temperature coefficient and low irradiation efficiency ensure even higher performance. In addition, due to the high-density wiring, the efficiency of Vertex S+ can reach up to 22%. N-type cells are made using phosphor, which allows them to achieve a lower rate of power degradation that translates into higher efficiency over many years of use, leading to greater savings

Product parameters:

- 30-year performance guarantee
- 25-year product warranty
- High and stable efficiency of up to 22.8% thanks to innovative manufacturing technology
- Positive power tolerance up to +5 W
- Minimised micro-cracks due to innovative non-destructive cutting technology
- Multi-bus technology improves light absorption and current dissipation, lower series resistance
- excellent performance even in low solar irradiance
- snow load up to 5400 Pa and wind load up to 4000 Pa

Specifications:

- rated power: 455 W
- Type: N-type, Topcon, monocrystalline
- module efficiency: 22,8 %
- maximum current (Imp): 10,11 A
- Maximum supply voltage (Vmp): 45 V
- Voltage at no-load (Voc): 53,4 V
- Short-circuit current (ISC): 10,77 A
- Maximum system voltage: 1500 VDC (IEC)
- Connector type: MC4/MC4 compatible
- Front glass: 1.6 mm thermally reinforced glass with high transparency
- degree of protection: IP68
- number of cells: 144
- Dimensions: 1762 x 1134 x 30 mm
- weight: 21 kg
- frame: anodised aluminium alloy
- frame colour: black
- packing: 1 piece / pallet 36pcs

The panels are suitable for subsidised and non-subsidised installations. SVT code SVT35726 for the subsidy program New Green Savings (2021-2030)
