Teljesítményswitch MOSFET PWM 15A 400W, XY-MOS modul

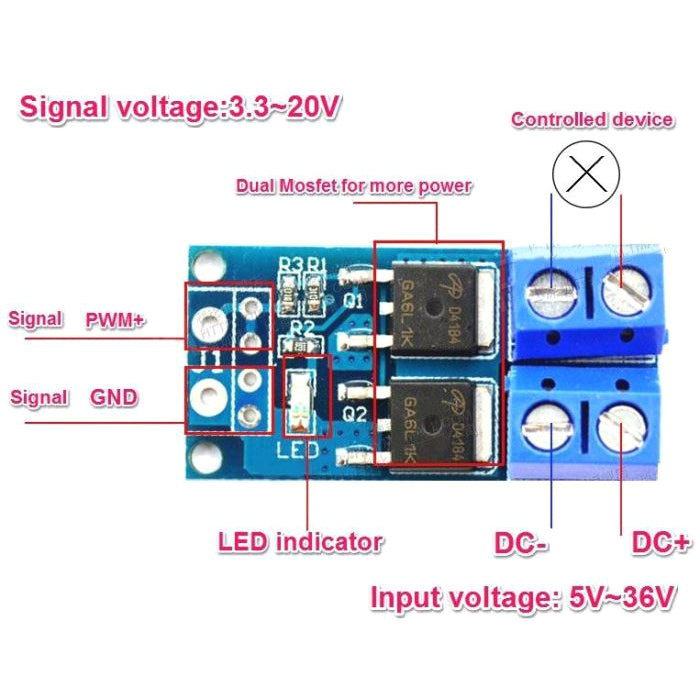

The module can be used as a power switch or as a power stage for PWM controllers. This allows you to control many devices, such as motors, lights, etc.. Technical parameters:. - operating voltage: 5-36 V DC. - control voltage: 3.3-20 V. - control frequency: 0-20 kHz. - output current: 15 A, with cooling up to 30 A. - power: 400 W. - operating temperature: -40 ~ + 60 ° C. - terminal block spacing: 5.08 mm. - size: 34 × 17 × 12 mm. The product is not a stand-alone unit, it requires professional installation.
