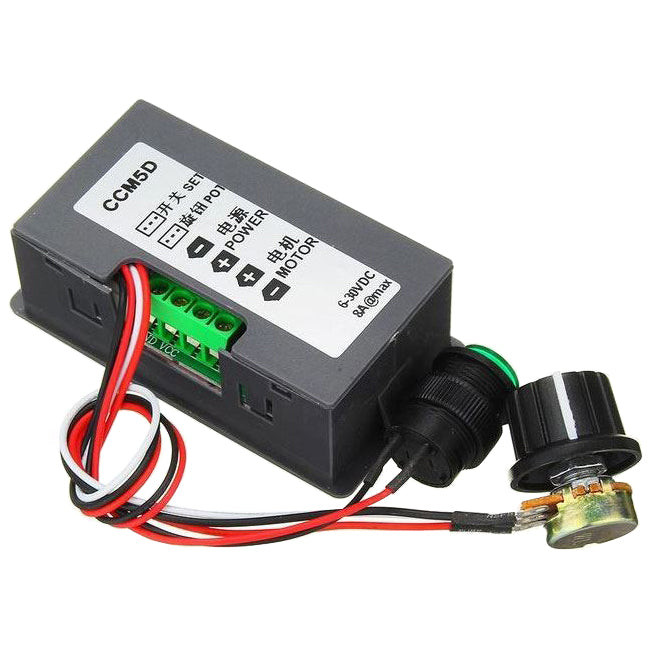

PWM DC motor sebességszabályozó 8A-ig CCM5D

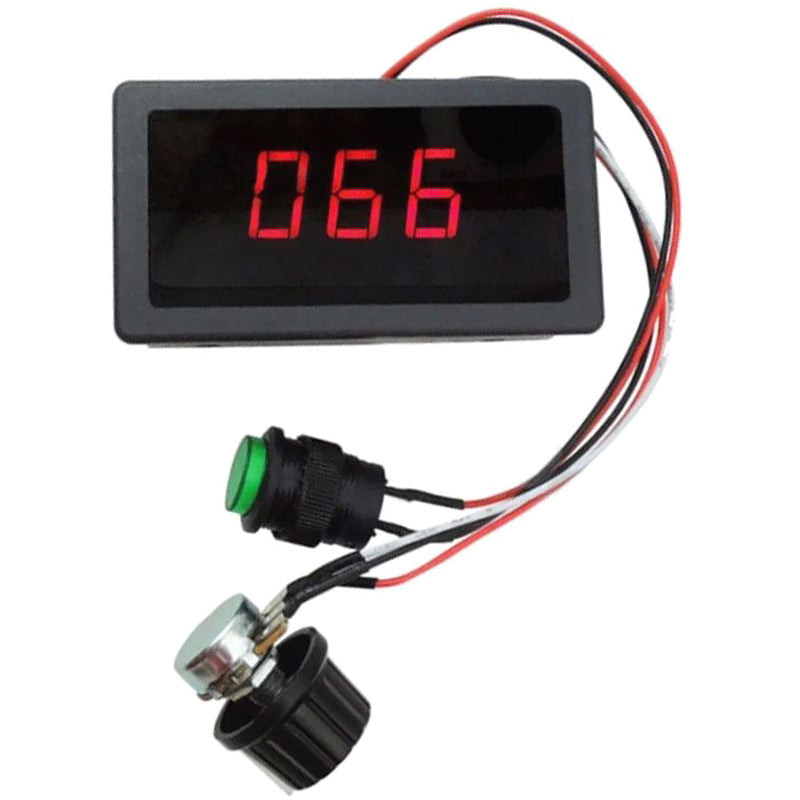

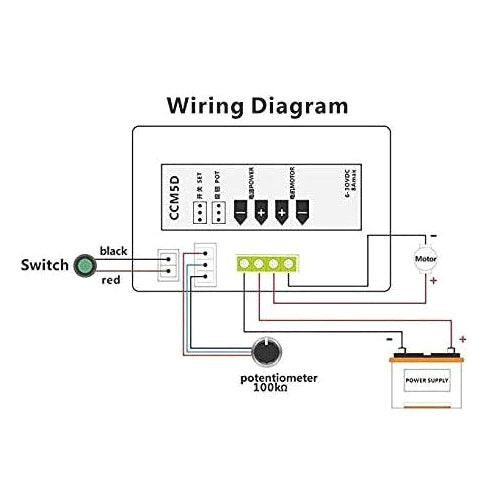

Pulse PWM controller for DC motors or LED lights and display strips.. Technical parameters:. - power supply: 3V-30 VDC. - for power: 50 - 240 W. - operating current: 5 A. - maximum current: 8 A. - PWM Frequency: 16 kHz. - keying ratio: 0-100%. - PCB dimensions: 79 × 49 × 24 mm. - knob diameter: 19 mm. - operating temperature: -20 to 60 ° C. - weight: 60 g. Instructions for use. 1. Connect the cables according to the wiring diagram.. 2. Turn on the power and set the potentiometer.. 3. The LED display shows the PWM output duty cycle. The product is not a stand-alone unit, it requires professional installation.
