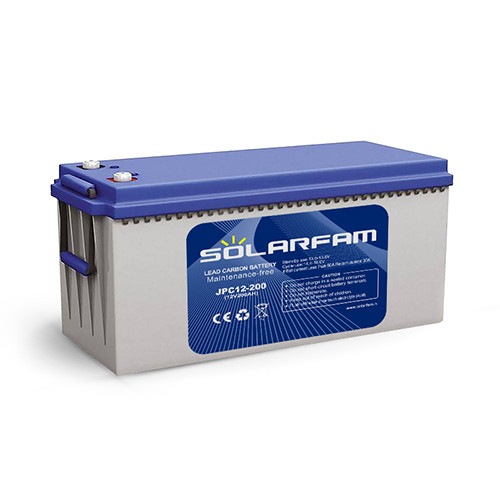

Lead carbon battery 200 Ah SOLARFAM

Lead-acid carbon batteries are a new kind of lead-acid batteries. In this case, with a bonded, acidic electrolyte, the same as a known AGM battery. Lead-acid carbon batteries have better partial discharge performance and a much longer cyclical life than conventional AGM/GEL lead-acid batteries.

Advantages of carbon battery lead:
Lower sulfatation at partial discharge/charge
Lower charging voltage and therefore higher efficiency and less corrosion of the negative plate
The consequence is the most relevant parameter and thus the higher battery life

Technical specifications:

- voltage: 12 V
- capacity: 200 Ah
- maximum discharge current: 2200 A (5 sec)
- maximum charging current: 60 A
- dimensions: 223 x 522 x 240 mm
- connection(s): bolt M8
- weight: approx. 61,5 kg
- internal resistance (fully charged battery 25°C): 2,8 mΩ
- self-discharging process 3%, 25°C
- working temperature: -20 °C to +50 °C

Detailed technical information can be found in the download documents below
