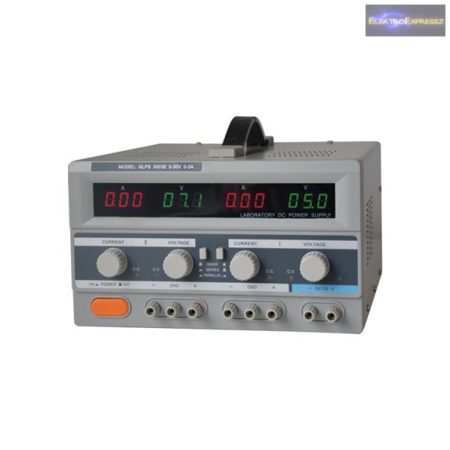

Labortápegység GLPS 2x0-30V/ 0-3A+ (5V-3A)
Labortápegység GLPS 2x0-30V/ 0-3A+ (5V-3A)
47 160 Ft + ÁFA (59 893,2 Ft)

Labortápegység GLPS 2x0-30V/ 0-3A+ (5V-3A)

JELLEMZŐK
* 0-30V, 3A állítható, egyirányú 5V / 3A fix kimenet
* túláram védelem

Műszaki paraméterek:

- kimeneti feszültség: 0-30V
- kimeneti áram: 0-3A
- linearitás szabályozás: CV <0,01% + 3mV, CC <0,01% + 6mA
- terhelésszabályozás: CV <0.01% + 2mV, CV <0.01% 5mV, CC <0,01% + 6mA
- zaj: CV <1mV
- tápfeszültség: 230V AC, 50Hz
- méretek: 262x163x360 mm
- Súly: 7 kg

Termék beérkezés ha nincs készleten
2-8 nap
47 160 Ft + ÁFA (59 893,2 Ft)
Részletek
Description
Geti laboratory power supply for powering various electronic devices. It continuously regulates the output voltage and output current. It reliably maintains the set values ​​regardless of supply voltage fluctuations or the connected load. The device is designed to have high stability and power supply. The device is equipped with short-circuit protection so that in the event of an emergency it is safe for the user and at the same time it is not destroyed.
The device has compact dimensions and excellent performance. All this combined with an elegant design.
The power supply is suitable for work in research, laboratories and workshops, but also as a teaching aid in schools.

Product parameters:

- two output adjustable channels + third fixed channel 5V / 3A
- current limit protection
- constant voltage and current mode
- low ripple and noise, low drift
- preset current limit
- possibility to connect two channels in series or in parallel using a switch

Technical parameters:

- output voltage: 0-30V continuously adjustable
- output current: 0-3A continuously adjustable
- source regulation: CV <0.01% + 3mV, CC <0.01% + 6mA
- regulation in load: CV <0.01% + 2mV, CV <0.01% + 5mV, CC <0.01% + 6mA
- ripple and noise: CV <1mV
- power supply: 230V AC, 50 Hz
- working temperature 0 ° C - 40 ° C
- dimensions: 262x163x360 mm
- weight: 7 kg
Adatok
Garancia:
2 év
Cikkszám:
CZT_04220166
