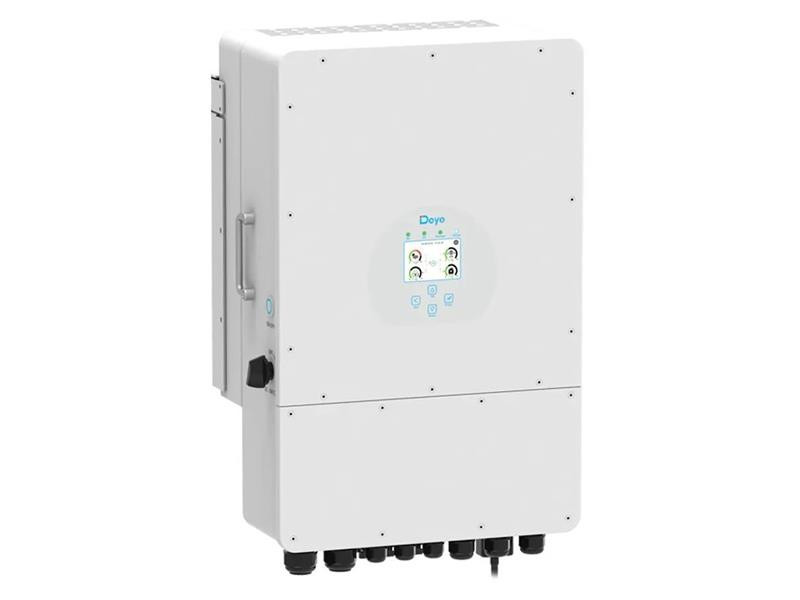

Hybrid inverter DEYE SUN-12K-SG04LP3-EU (12kw)

The versatile low-voltage 3-phase hybrid inverter Deye SUN-12K-SG04LP3-EU with wall bracket combines a solar inverter and battery charger. It supports asymmetrical 3-phase output with a range of 0 to 5 kW on each phase, 100% overload capacity for 10 seconds, extending its usability to the absolute maximum. The converter is compatible with low-voltage 40V to 60V batteries. Communication with the BMS is via CAN or RS485 interface and is fully compatible with lead-acid and lithium batteries from many brands. The colour LCD display provides a user-friendly interface for system overview and configuration (battery management, AC/solar charging depending on different applications, etc.). The biggest advantage of this converter is the adjustable ‘smart load’ input/output, to which a generator, mains converter or heating element for water heating can be connected. The possibilities of this port allow you to use similar functions to a wattrouter.


This inverter has been successfully certified by the EG.D a.s. laboratory and can be permanently connected to the distribution network in the Czech Republic in accordance with the rules valid from 1 January 2025.

Main parameters:
Supports 3-phase asymmetrical output
Number of MPP Trackers: 2 inputs (2+1)
MPPT voltage range: 200 to 650 V
Communication interface: CAN/RS-485 (for BMS), Modbus (RTU 485, e.g. for Loxone or external control system), RS-232 (for cloud dongle)
Solarman intelligent monitoring platform for photovoltaic power plant management. Can be equipped with a communication interface via Wi-Fi (included), Ethernet or LTE.
Unique features: Smart Load, Grid peak shaving, phase balancing
This device is included in the New Green Savings programme product list (code: SVT30773)


Technical parameters

Communication with BMS CAN/RS-485
Communication interface: RS-232, CAN/RS-485, Modbus
Battery inputs: 1
Connector type: MC4
Number of phases: 3
Max. DC input power: 15.6 kW
Max. output power: 12 kW
Maximum output current: 18.2 A
Number of MPP trackers: 2
Total number of strings: 2+1
PV input current: 26+13 A
MPPT operating range: 200 to 650 V
Battery system: Low voltage
Battery voltage range: 40 to 60 V DC
Max. charging and discharging current: 240 A
Efficiency: 97.6%

Protection rating: IP65
Design: Wall-mounted
Operating temperature: -40 to 60
Weight: 33.6 kg
Depth: 279 mm
Width: 422 mm
Height: 699 mm
