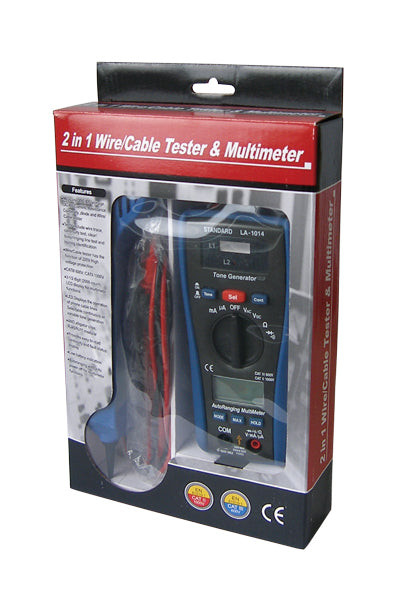

Hanggenerátoros vezetékkereső és multiméter egyben LA-1014

Műszaki adatok:

DC Feszültség: 200mV / 20V / 200V / 600V
AC Feszültség: 2V / 20V / 200V / 600V
egyenáram: 200μA / 2000μA / 20mA / 200mA
AC áram: 200μA / 2000μA / 20mA / 200mA
Ellenállás: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ

Max. kimeneti feszültség: 600V AC / DC
Frekvencia: 50-60Hz
Tone output: 800-860Hz (folytonosság) / 800-1050Hz (wobble)
Tápellátás: 9V a 2x AAA elemek
Súly: 328 g
Méretek: 162 x 74,5 x 44 mm
Műszaki leírás (angol)



Description

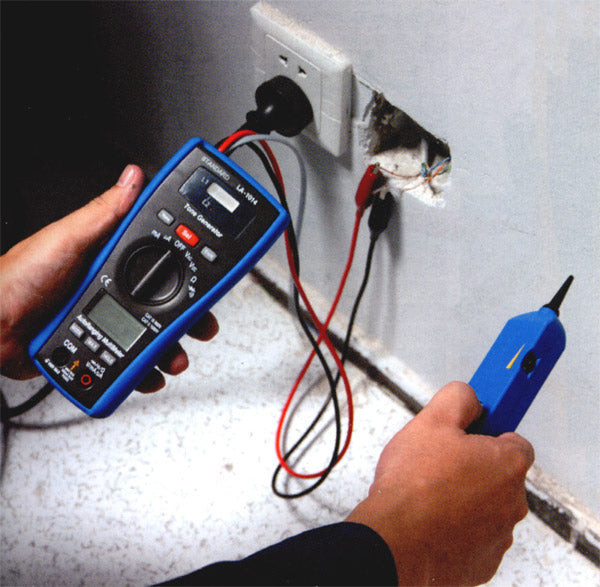

The 2 in 1 tester and multimeter are among the innovative testers that allow easy measurement of DC / AC voltage, current, resistance, diodes and verify cable continuity, quickly route cables or wires, including bundles, as well as telephone lines. You can easily find wiring in walls, ceilings and floors. It consists of a generator that modulates the high-frequency signal on the tested line and a very sensitive receiver that can reliably find the cable in the wall up to a depth of 15 cm. Possibility of signal connection via crocodile clip or RJ11 connector. However, what makes this device superior to others is the many functions of the multimeter. You do not need another device for routine measurements.

Product parameters:

- 2 in 1 tester and multimeter
- measures AC / DC voltage, AC / DC current, resistance, conductivity, diodes
- 3-1 / 2 (2000 count) numeric LCD display for multimeter functions
- LED display for checking telephone lines
- low battery indication
- optional tone generator functions

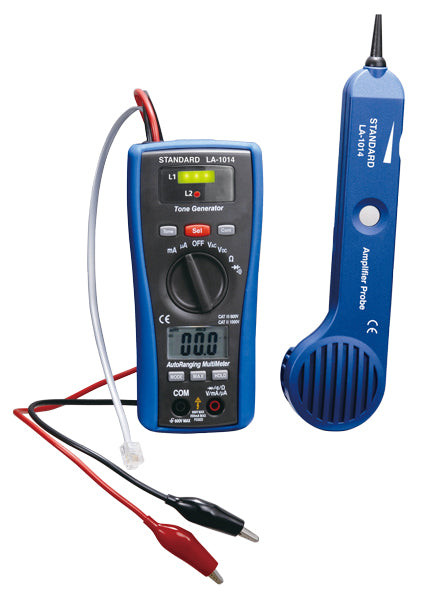

- crocodile clips, RJ45 / RJ11 module
- CAT III 600V, CAT II 1000V
- Easy control of conductivity and interruptions on the display
- Tests include wire tracing, conductivity, signal-free signal-operation, and connector wiring identification
- the tester has protection against mains voltage 230 V AC
- selection of self-range and automatic shutdown
- hidden line detector - detects the cable up to 15 cm deep

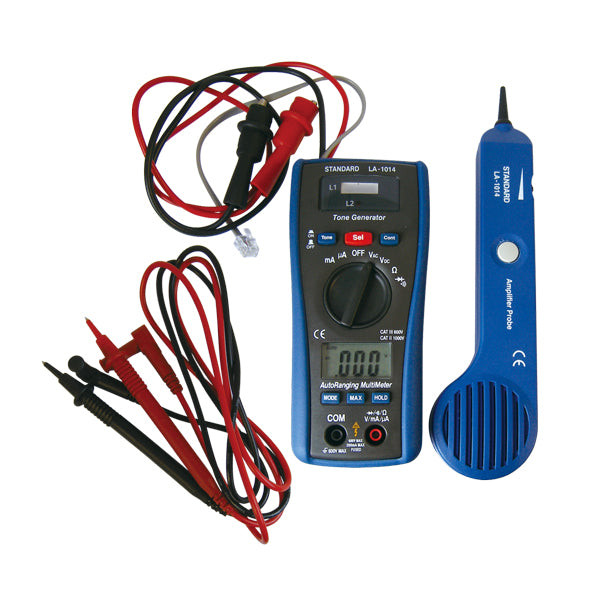

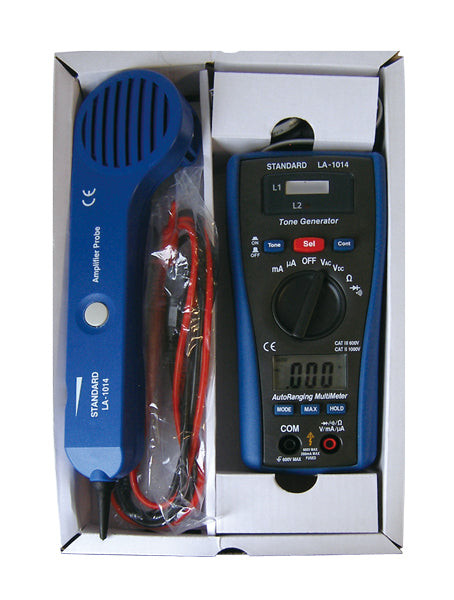

- 2 parts - generator and probe
- rubber protection for exceptional durability

Technical parameters:

- DC voltage range: 200mV / 2V / 20V / 200V / 600V
- AC voltage range: 2V / 20V / 200V / 600V
- DC current range: 200μA / 2000μA / 20mA / 200mA
- AC current range: 200μA / 2000μA / 20mA / 200mA
- Resistance range: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ

- max. Input voltage: 600V AC / DC
- frequency range: 50-60Hz
- generator: 800-860Hz (constant output) / 800-1050Hz (fluctuating output)
- power supply: 9V and 2x AAA batteries
- operating temperature: 0 ~ 40 ° C (32 ~ 104 ° F)
- storage temperature: -10 ° C ~ 50 ° C (14 ~ 122 ° F)
- weight: 328 g
- dimensions: 162 x 74.5 x 44mm
