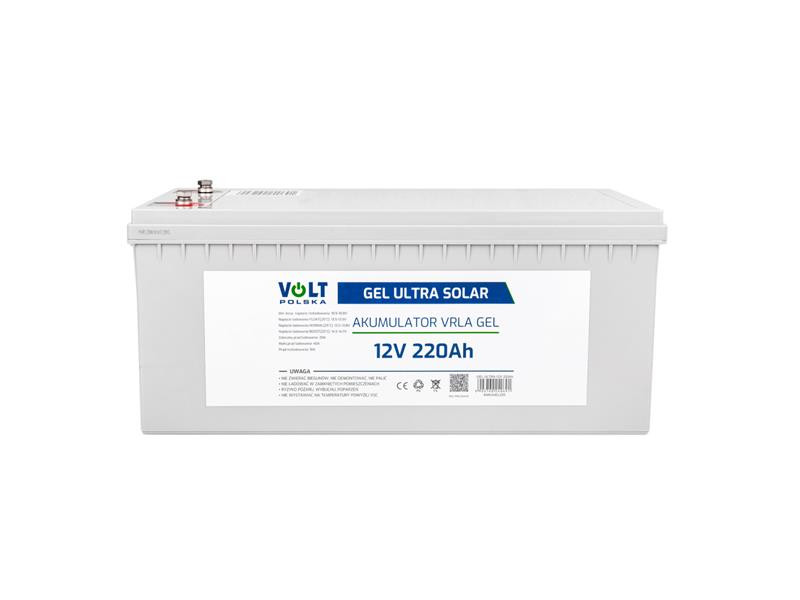

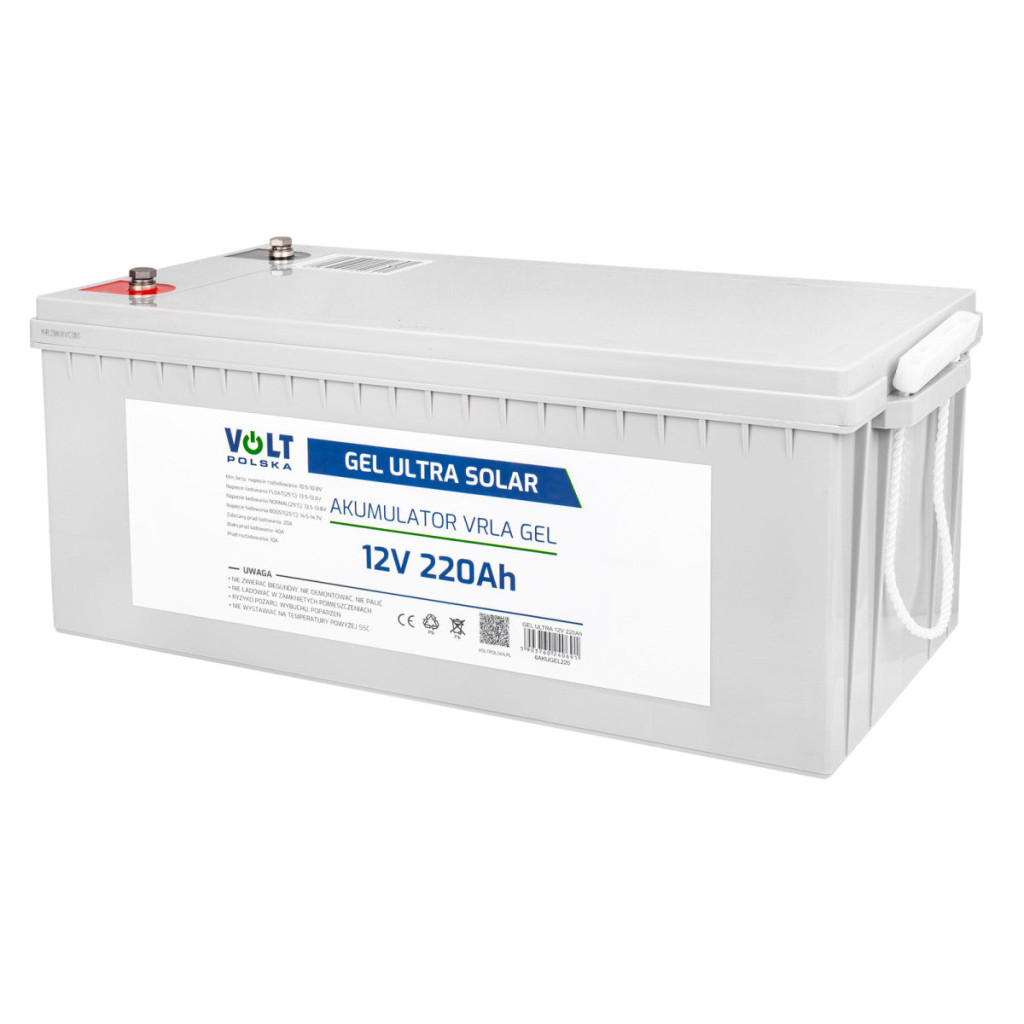

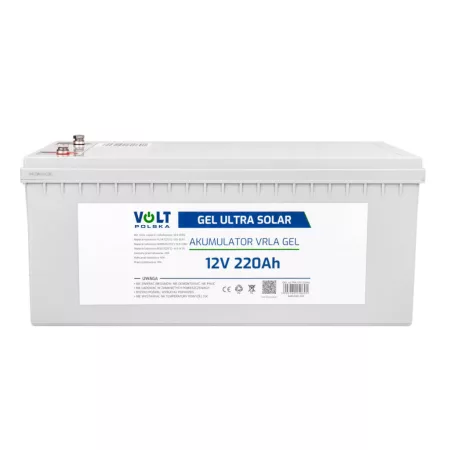

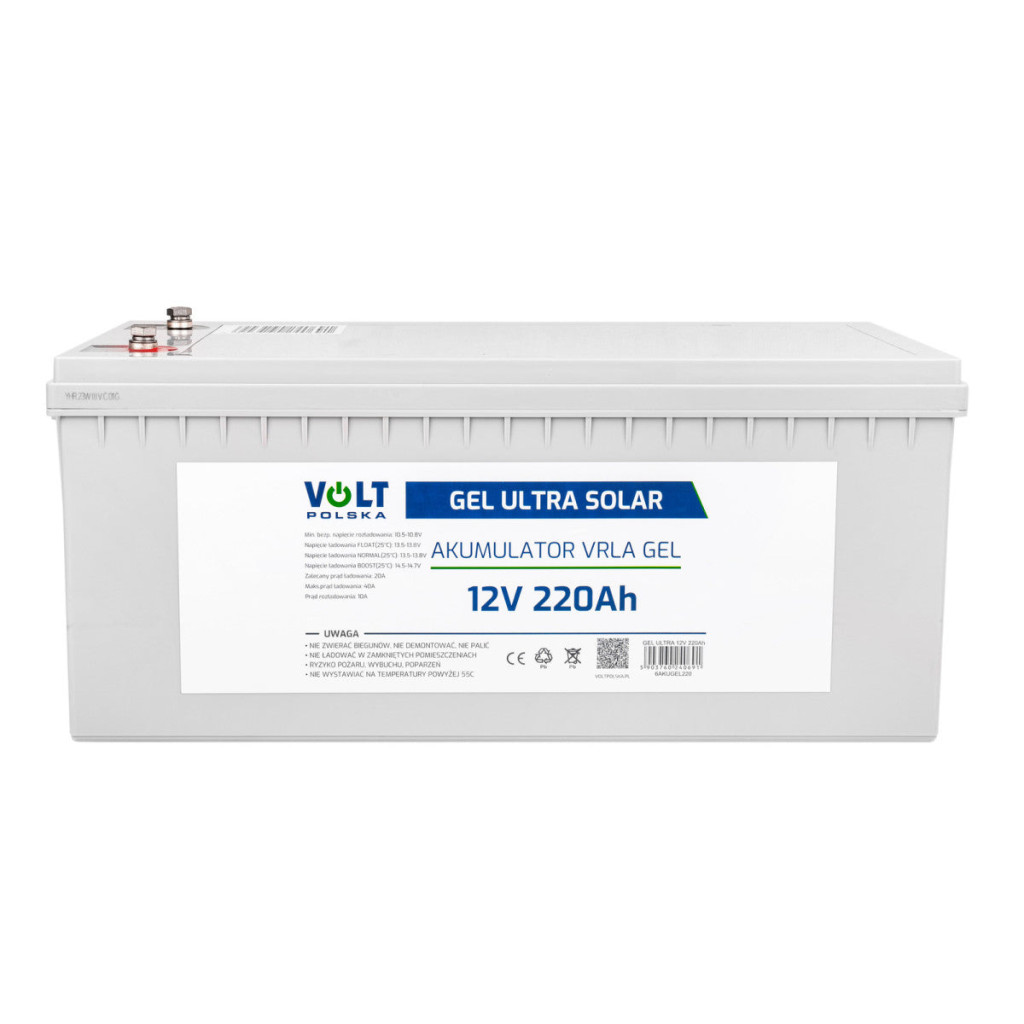

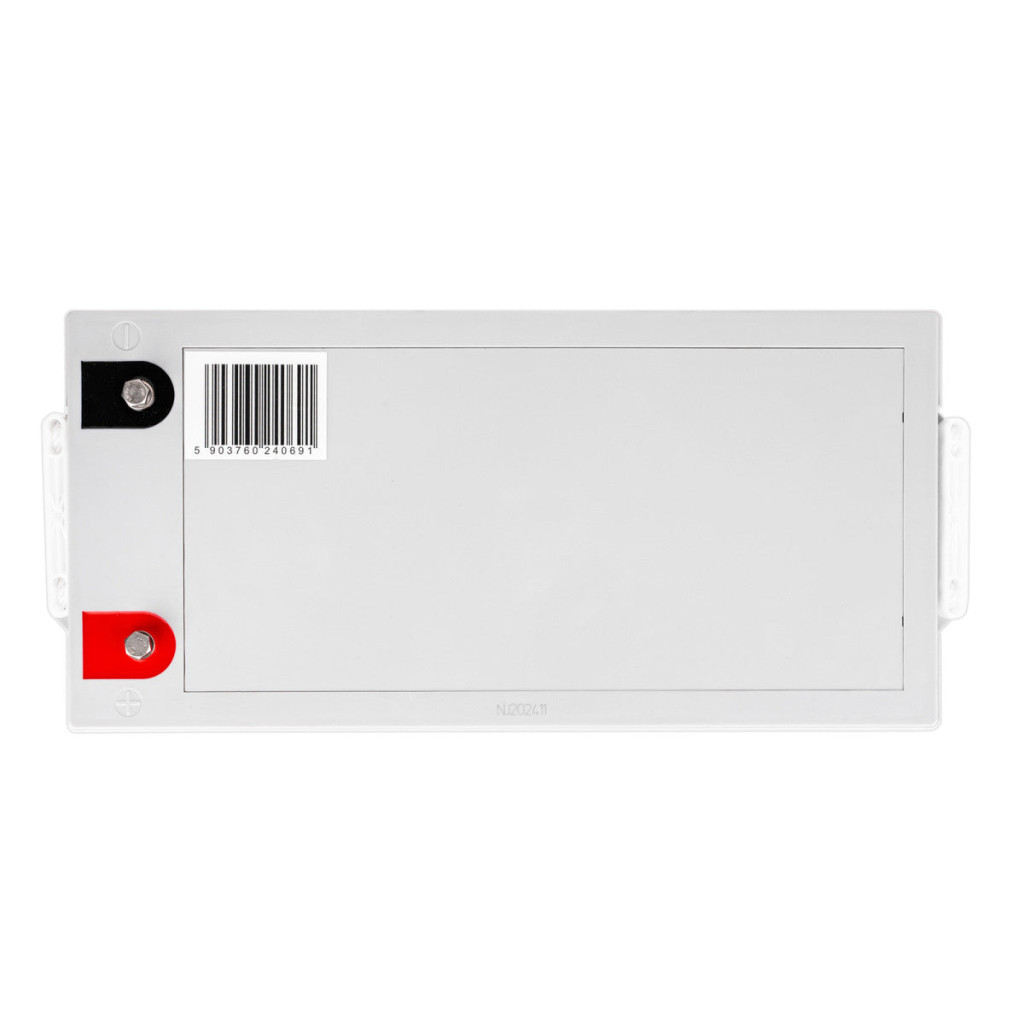

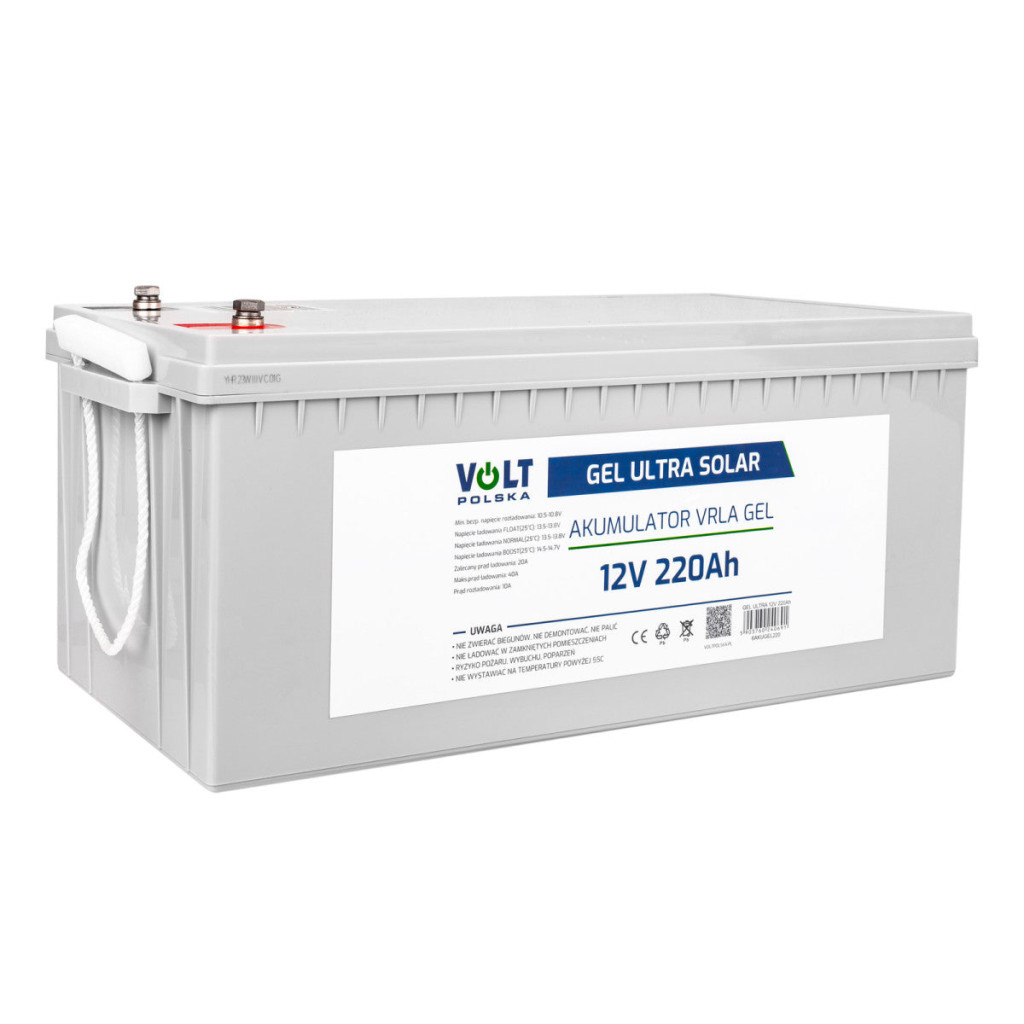

Gel battery 12V 220Ah V-PRO ULTRA SOLAR DEEP CYCLE

WARNING: This product, due to its weight, falls into the category of oversized goods for which special transport must be arranged. The delivery time may therefore be extended to 3-4 days.

GEL series batteries are designed to power photovoltaic systems or vehicles where the battery is subject to shocks and pulsed charging sources such as solar controllers. The gel electrolyte makes the GEL battery ideal for cyclic operation, even with deep discharges. It achieves several times the number of discharge cycles compared to AGM batteries. The design life is up to 12 years in storage operation at a temperature of 25 °C.

Key features:

The gel battery has a similar structure to AGM batteries, except that the electrolyte is stored in a gel paste. This construction makes it more resistant to electrolyte leakage than AGM batteries.
Automatic sealing system. When the pressure inside the battery rises too high, the valves open, safely venting the resulting gas out of the casing and preventing damage. This occurs when the battery is overcharged.
The battery case is made of ABS material, the cells are made of copper
What devices can the gel battery power?
- Emergency power systems (UPS, inverters)
- Telecommunication systems
- CCTV systems
- Alarm and fire alarm systems
- Backup and emergency lighting
- Wind and solar power plants
- Power tools - Power supply
Medical equipment
- Electric vehicles (motorcycles, ATVs, scooters)
- Mobile vehicles (wheelchairs, golf carts, forklifts, industrial vehicles)
- Water vehicles (motorboats, boats with hermetic battery cover)
- Garden vehicles (lawnmowers, etc.)
- Caravans

Why is it worth using a gel battery?
- Very long life (up to 12 years) and low self-discharge
- Can be operated in storage and cycling systems
- Maintenance free - no refilling or changing of electrolyte required
- Safe (no electrolyte leakage, pressure valves)

Rated voltage:12V
Rated capacity:220Ah
Overall height:226 mm
Height:220 mm
Width:238 mm
Length:522 mm
Weights:57 kg (125.6 lbs) ± 3%
Capacity (at 25°C) 10 h (10.8V):220Ah
Capacity (at 25 °C) 5 h (10.5 V):160Ah
Capacity (at 25 °C) 3 h (10,8 V):141Ah
Capacity (at 25 °C) 1 h (9.6 V):120Ah
Internal resistance (at 25 °C):2.7 mΩ
Capacity: (40 °C):102 %
Capacity (25 °C):100 %
Capacity (0 °C):85 %
Capacity (-15 °C):65 %
Self-discharge (25 °C) 3 months:91 % of rated capacity
Self-discharge (25 °C) 6 months:82 % of rated capacity
Self-discharge (25 °C) 12 months:64 % of rated capacity
Recommended operating temperature:25 °C ± 3 °C
Operating temperature range - discharge:-15 °C to 50 °C
Operating temperature range - charging:-10 °C to 50 °C
Operating temperature range - storage:-20 °C to 50 °C
Maintenance charge voltage (25 °C):13.5-13.8 V DC
Cyclic charging voltage (25 °C):14.4-14.7 V DC
Maximum charging current:60A
Maximum discharge current:1400 A (for 5 seconds)
Design life (25 °C):12 years
