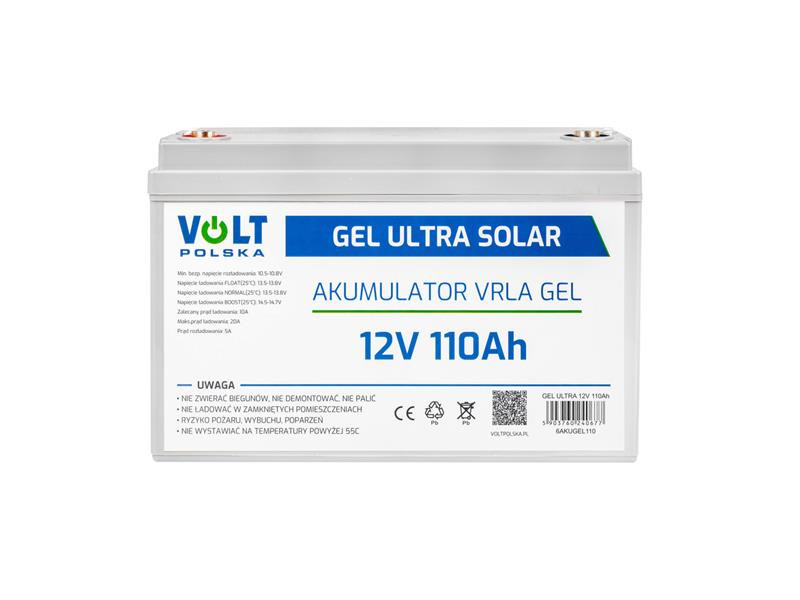

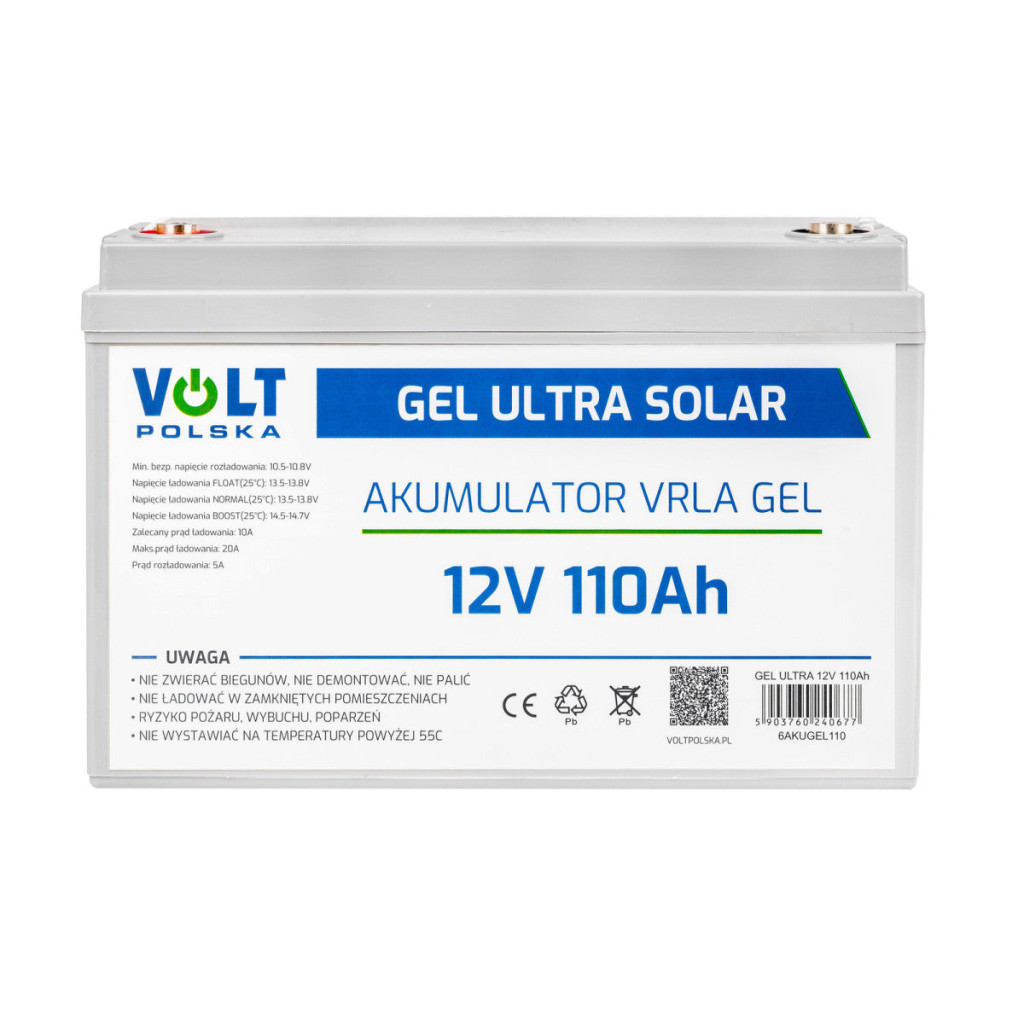

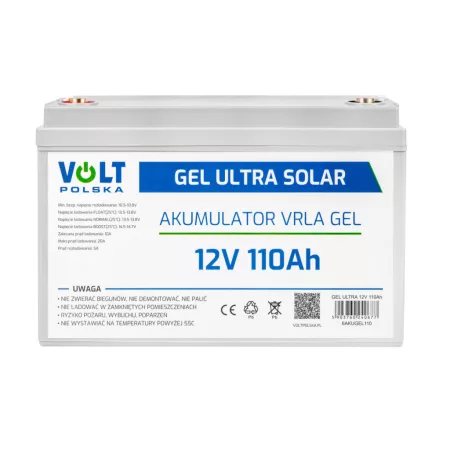

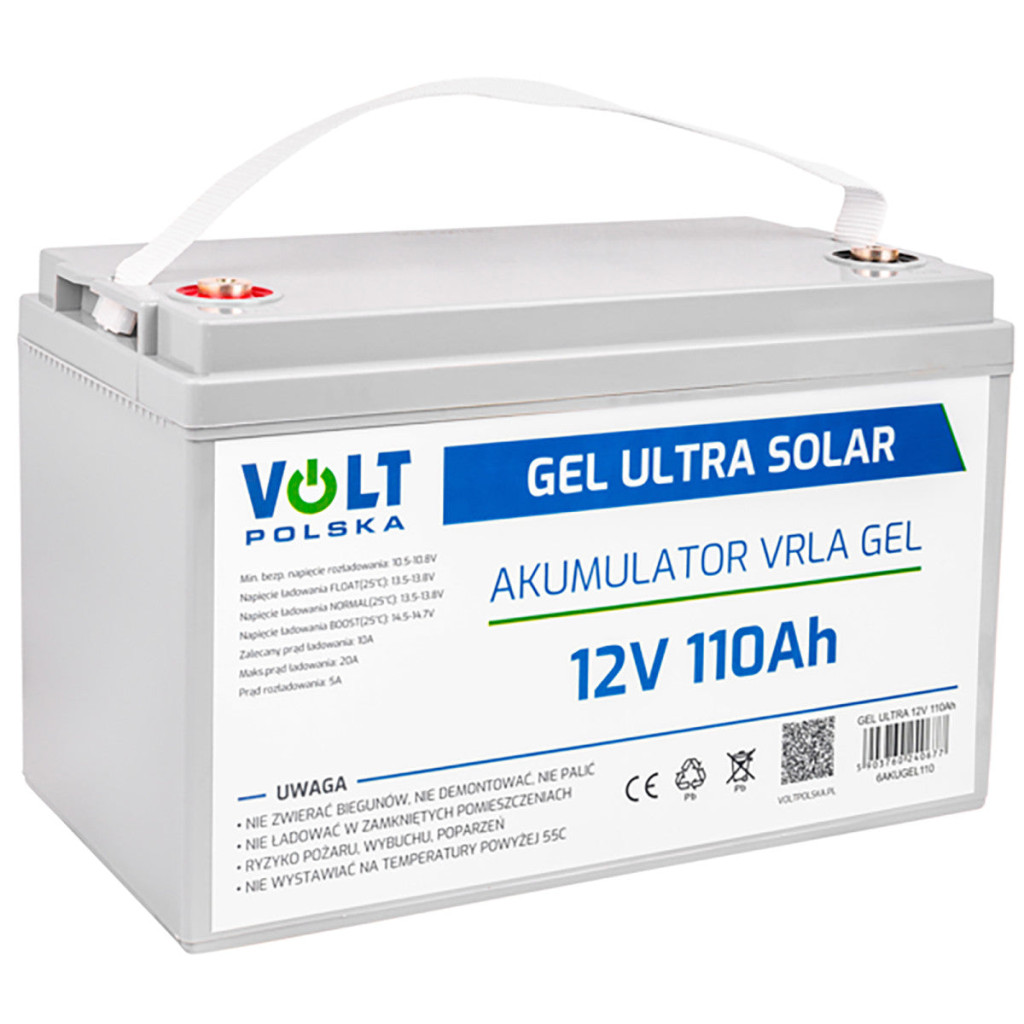

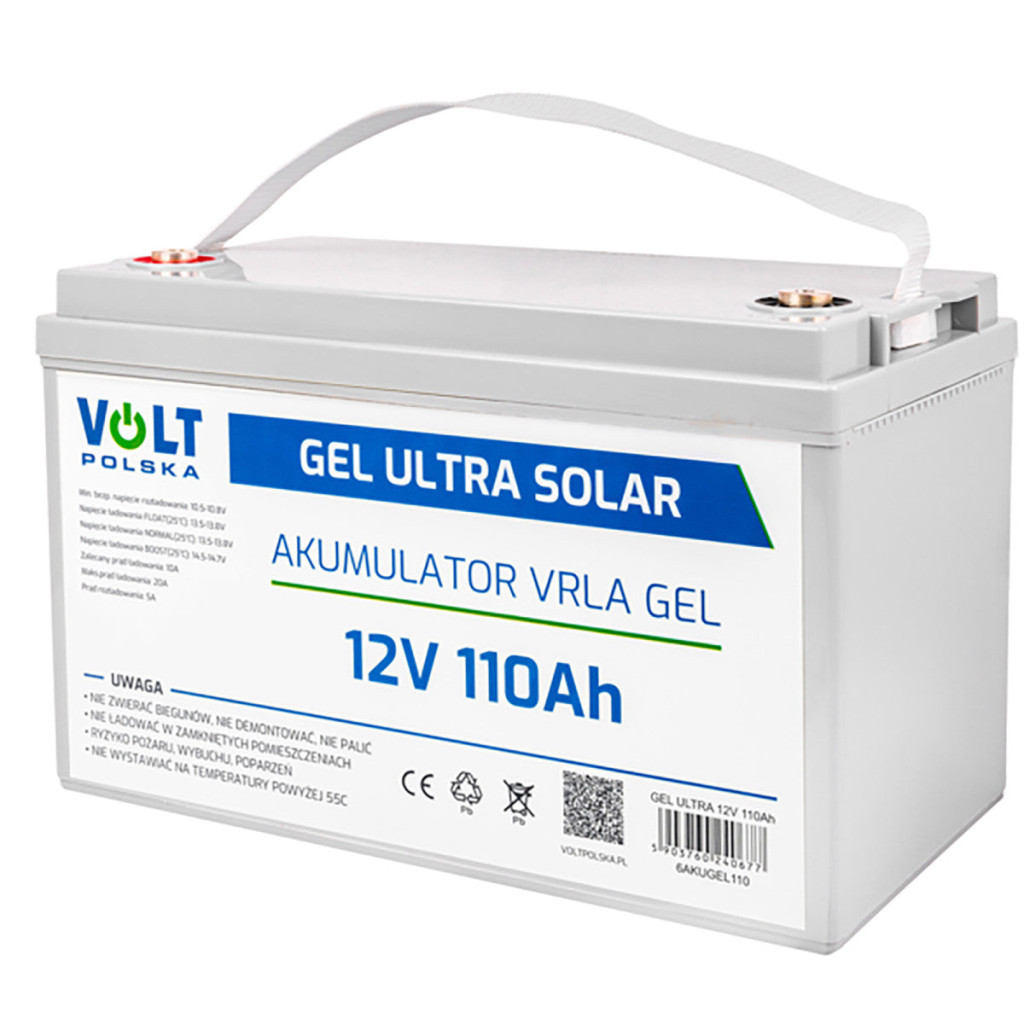

Gel battery 12V 110Ah V-PRO ULTRA SOLAR DEEP CYCLE

WARNING: This product, due to its weight, falls into the category of oversized goods for which special transport must be arranged. The delivery time may therefore be extended to 3-4 days.

The GEL (gel) series battery is intended for, among other things: for powering photovoltaic systems or vehicles where the battery is subject to shocks and charging from impulse sources such as solar controllers. The gel electrolyte-based design makes the GEL battery ideal for cyclic operation even under deep discharges. It achieves several times more discharge cycles compared to AGM batteries. The design life is up to 12 years, with equilibration operation at 25 °C.

- A GEL battery has a similar structure to an AGM battery, except that in a gel battery the electrolyte is stored as a gel paste. This construction makes it more resistant to electrolyte leakage than AGM batteries.
- Automatic sealing system. When the pressure inside the battery is too high, the valves open, causing the resulting gas to be safely vented outside the casing and preventing damage. This occurs when the battery is overcharged
- The battery case is made of ABS material, the cells are made of copper
- What devices are powered by GEL batteries?
- Emergency power systems (UPS, converters)
- Telecommunication systems
- Closed circuit television systems
- Alarm and fire alarm systems
- Backup and emergency lighting systems
- Wind and solar power plants
- Power supply for power tools
- Power supply for medical equipment
- Electric vehicles (motorcycles, ATVs, scooters)
- Mobile vehicles (wheelchairs, golf carts, bodywork)
- Forklifts
- Garden vehicles (mowers, etc.)
- Caravans

Why use a GEL battery?
- Very long life (up to 12 years) and low self-discharge
- Ability to operate in a balancing and cycling system
- Maintenance free - no need for refilling or changing electrolyte
- Safe to use (no electrolyte leakage, pressure valves)

Specifications:

- Rated voltage:12V
- Nominal capacity:110Ah
- Overall height:218 mm
- Height:213 mm
- Width:173 mm
- Length:331 mm
- Weights:28.6 kg (63.05 lbs) ± 3%
- Capacity (at 25°C) 10h (10.8V):110Ah
- Capacity (at 25°C) 5h (10.5V):80Ah
- Capacity (at 25°C) 3h (10.5V):73.5Ah
- Capacity (at 25°C) 1h (10.5V):55Ah
- Internal resistance (at 25°C):3.5 mΩ
- Capacity: (40°C):102%
- Capacity (25°C):100%
- Capacity (0°C):85%
- Capacity (-15°C):65%
- Self-discharge (25°C) 3 months:91% of rated capacity
- Self-discharge (25°C) 6 months:82% of rated capacity
- Self-discharge (25°C) 12 months:64% of rated capacity
- Recommended operating temperature:25°C ± 3°C
- Operating temperature range - discharge:-15 °C to 50 °C
- Operating temperature range - charging:-10 °C to 50 °C
- Operating temperature range - storage:-20 °C to 50 °C
- Buffer charging voltage (25°C):13.5VDC-13.8VDC
- Cyclic charging voltage (25°C):14.4VDC-14.7VDC
- Maximum charging current:30A
- Maximum discharge current:800A
- Design life (25°C):12 years
