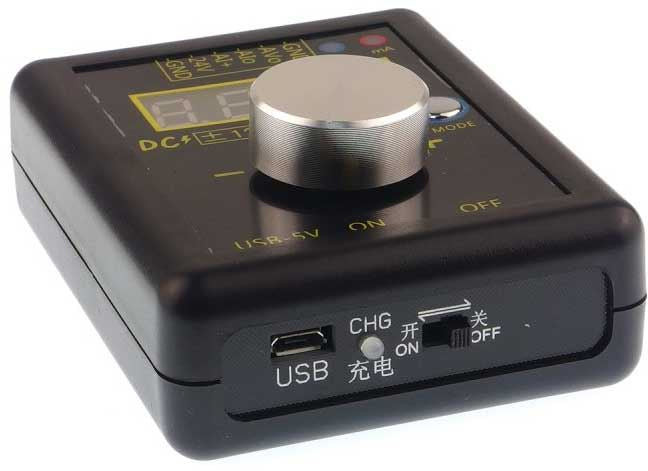

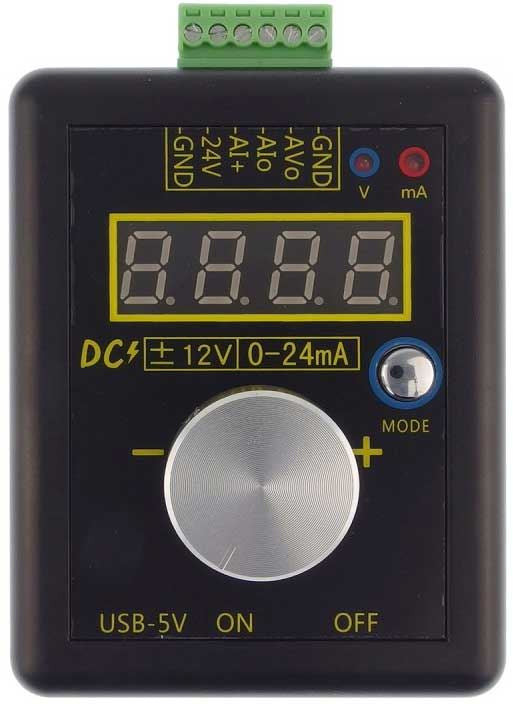

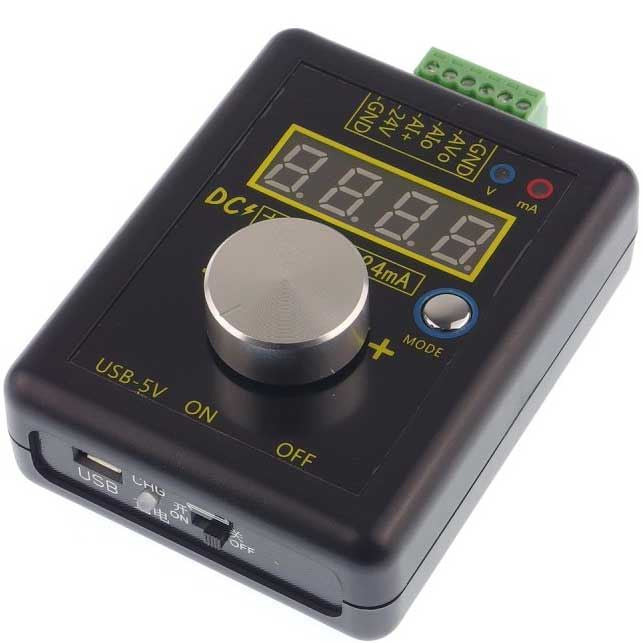

FNIRSI SG-002BAT analog signal generator and calibrator

Analog signal generator and calibrator ±12V / 0-24mA FNIRSI SG-002BAT.. The voltage and current signal generator is a portable device that allows you to generate signals with set parameters. It is designed for various applications such as testing and calibrating electronic devices, circuit testing, diagnostics and many others. The generator develops a voltage signal in the range of ±12 V. and a current signal in the range of 0 to 24 mA and displays it on the LED display. It also has a signal parameter saving function that allows you to easily load previously set configurations. Signal parameter control is intuitive and is performed using a potentiometer. The device can be powered by a voltage of 15-30V on the terminal block, via a Micro USB connector or from a built-in Li-Pol battery 3.7V/1100mAh.. Technical parameters:. - voltage signal ±12V, accuracy 0.01V. - current signal 0 - 24mA, accuracy 0.01mA. - 4-digit LED display. - saving output signal parameters (by pressing the potentiometer). - power supply:. 15V - 30V - terminal block: GND, +24V. Micro USB connector: 5V. Lithium battery 3.7V 1100mAh. - dimensions: 89 x 69 x 28 mm. - weight: 115 g. This product is not a separate functional unit and requires professional assembly.
