Léptető- vagy DC motor meghajtó/vezérlő modul L298N-nel

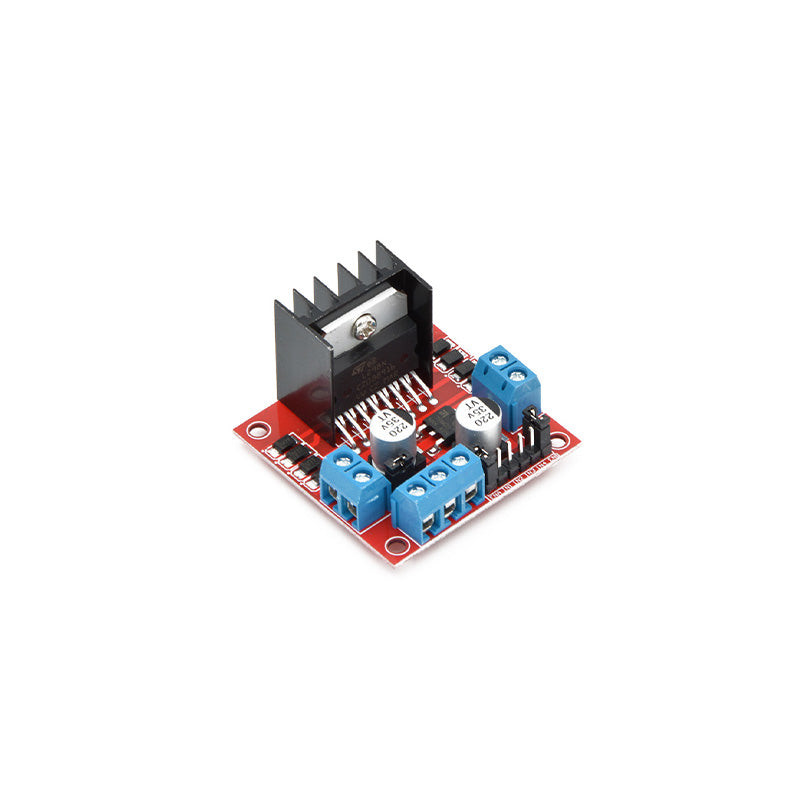

The L298N module is a powerful and popular motor driver that allows controlling the rotation direction and speed of two DC motors or one 2-phase or 4-phase stepper motor. It features excellent control capability, low operating temperature, and strong resistance to interference.. It supports power supply up to 46V, with a maximum current of 3A (2A continuous) and power output up to 25W. The module includes a built-in 5V voltage regulator, which can be used to power a microcontroller when the input voltage is between 7-35V. However, if the motor power supply exceeds 12V, it is recommended to use an external 5V power source for more stable operation.. For easy connectivity, the module is equipped with ARK screw terminals, allowing quick connection of motors and power supply by simply tightening the wires. Goldpin connectors are used for control signals, making it easy to interface with Arduino, Raspberry Pi, and other microcontrollers. Connecting to Arduino is straightforward and can be easily set up using available guides.. This module is ideal for robotics and automation projects, motor control in smart home applications, CNC systems, or remote-controlled vehicles.. Technical specifications:. - Controller: L298N. - Dual H-Bridge driver. - Logic voltage: 5V. - Motor voltage: 5V-35V. - Current: max. 2A per motor. - Power: max. 25W. - Dimensions: 43 × 43 × 26 mm. - Weight: 29g. Package contents: 1 piece. This product is not a standalone functional unit and may require professional assembly.
