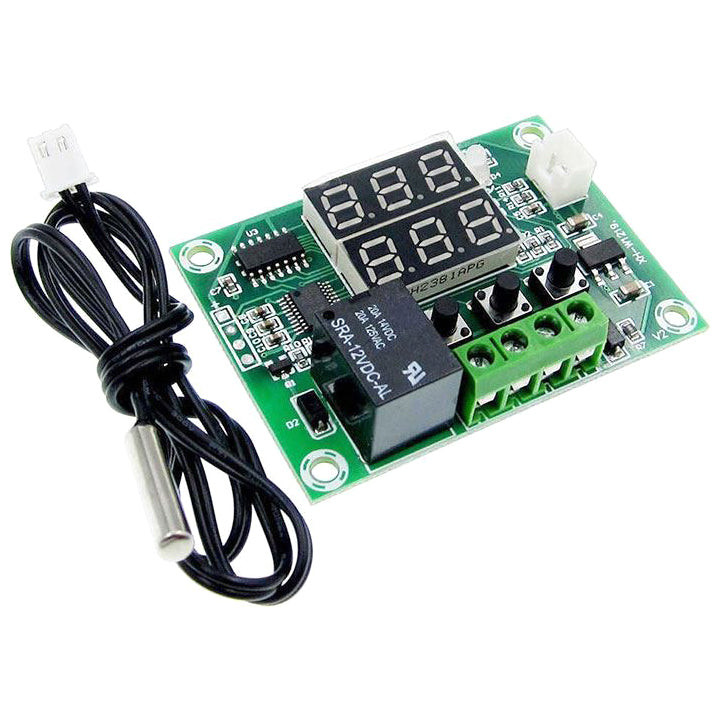

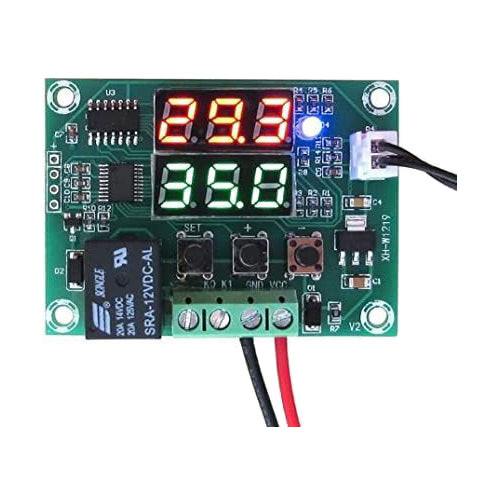

Digitális termosztát XH-W1219, -50-től 110 °C-ig

Digital thermostat XH-W1219, -50 to 110 ° C. Model: XH-W1219.. Technical parameters:. - model: XH-W1219. - power supply: DC12V. - relay current: 50mA. - control range: -50 ~ 110 degrees Celsius. - control accuracy: 0.1 celsius. - measuring input: NTC10K waterproof sensor L = 0.5 m. - high temperature alarm: -49 ~ 110 celsius. - DC 12V output type: relay output 10A (max.). - return flow difference setting: 0.1 ~ 30 degrees Celsius Start-up delay: 0-10 minutes. - temperature calibration: -10 ~ 10 degrees Celsius. - size: 60 x 43 x 16 mm. - P0: Temperature control mode (cooling / heating): when using this product for the first time, if used for heating, set H, if used for cooling, set C.. - P1: Return difference setting (0.1 ~ 30 celsius): long press the SET key to enter the internal setting, select the P1 setting; then press the SET button to set the return difference value. - P2: Temperature calibration: this function is used to calibrate the temperature. If the detection temperature and the actual temperature differ, users can use this function to calibrate. - P3: Start delay (0 ~ 10 minutes): this function is for compressor cooling. - P4: Set high temperature alarm value (-50 ~ 110 Celsius): if the actual temperature is higher than this value, the screen will start flashing and an alarm will sound. - restore factory settings: With the power on, press and hold the + - button for 3 seconds. The product is not a self-functional unit, it requires professional assembly.
