W3230 digitális termosztát, -50-től 120°C-ig, 24VDC

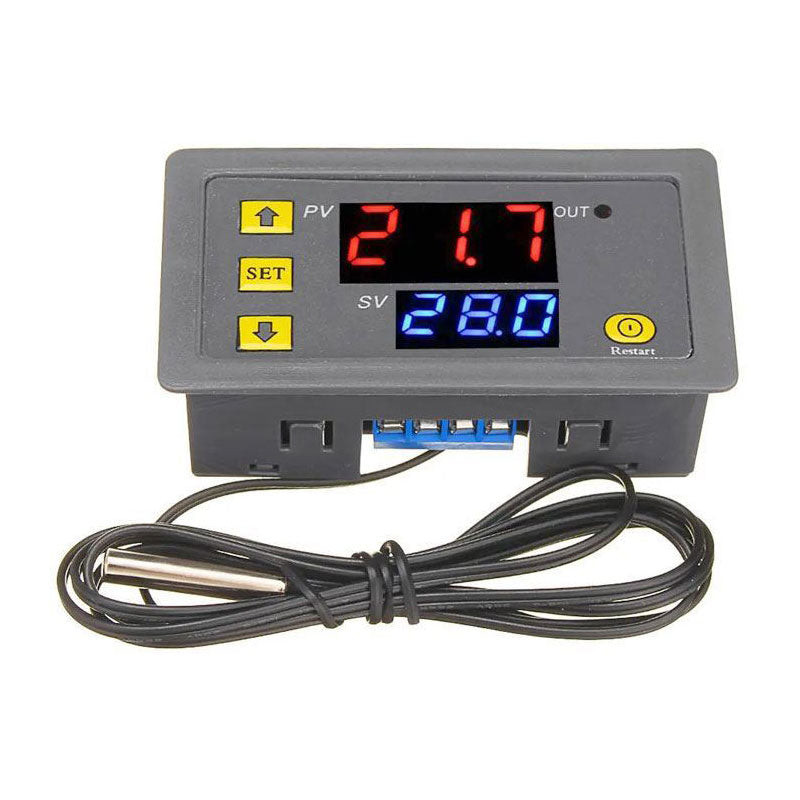

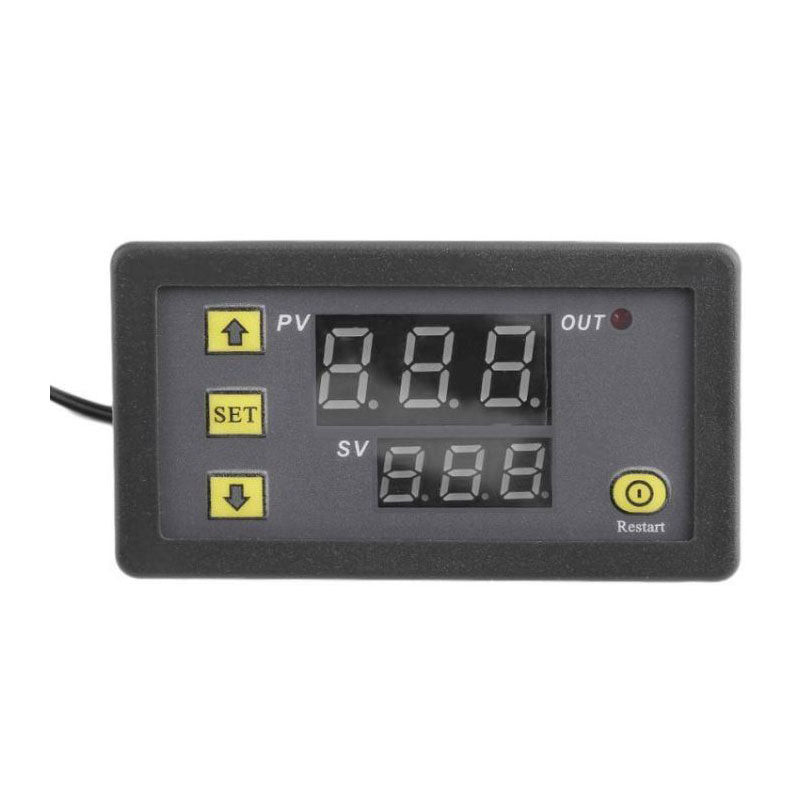

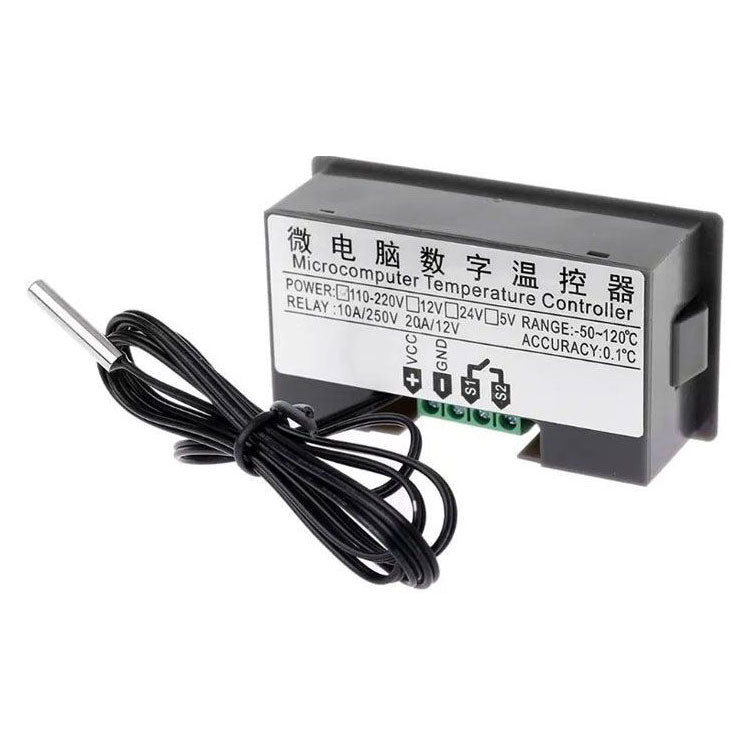

Digital thermostat W3230, -50 to 120°C, 24VDC power supply. A simple thermostat that displays the set and current temperature. The compact case for the panel contains buttons near the display. 1m cable with probe.. Technical parameters:. - temperature measurement range: –55°C to 120°C. - measurement step: 0.2°C. - accuracy: 0.2°C. - adjustable hysteresis: 0.1%~30%. - temperature calibration: –10° to +10°. - refresh rate: 0.5s. - supply voltage: DC12V/60mA. - relay contact: 15VDC/15A – resistive load, 3A – inductive load. - measuring element: NTC (10K 0.5%), length 100cm, waterproof thermistor case. - the thermostat can be operated in both cooling and heating mode.. - dimensions: 78×42×25mm, required hole in the panel: 40×72mm. Instructions for use:. A short press of the RESTART button turns the thermostat on, a long press turns it off. By briefly pressing the SET button after the display flashes, you can set the desired temperature with the up and down arrows. By long pressing the SET button and then using the arrows, other functions of the thermostat can be set:. P0: heating mode (H) or cooling mode ©. P1: hysteresis setting 0.1 to 30°C. P2: setting the upper maximum temperature limit. P3: setting the lower maximum temperature limit. P4: temperature correction compared to the temperature sensor -10 to 10°C. P5: time delay 0 to 10 minutes. P6: Signaling when the maximum temperature has been reached -50 to 120°C (factory disabled). P7: Keypad lock. P8: Factory reset. - the product is not an independently functional unit, it requires professional assembly.
