Digitális termosztát W3230, -50-től 110 °C-ig

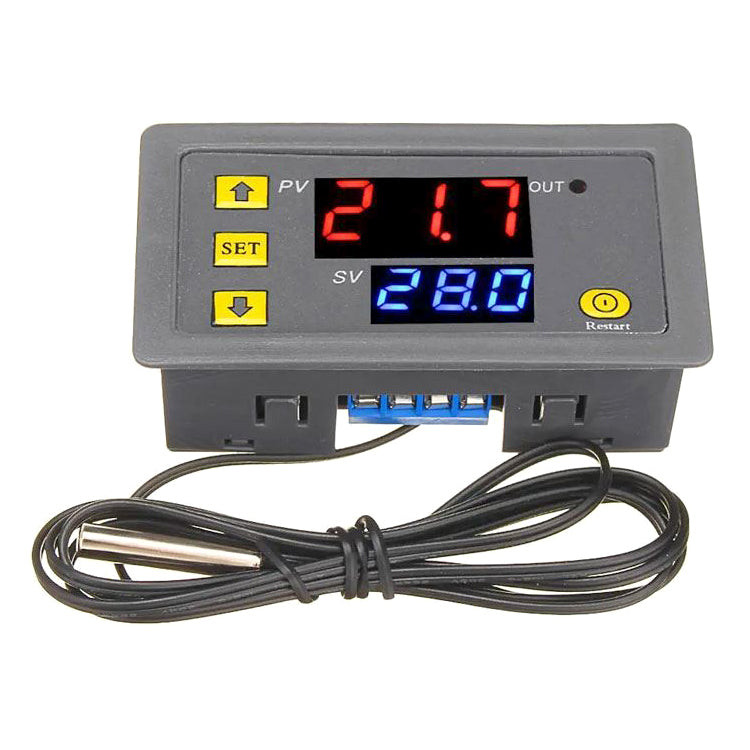

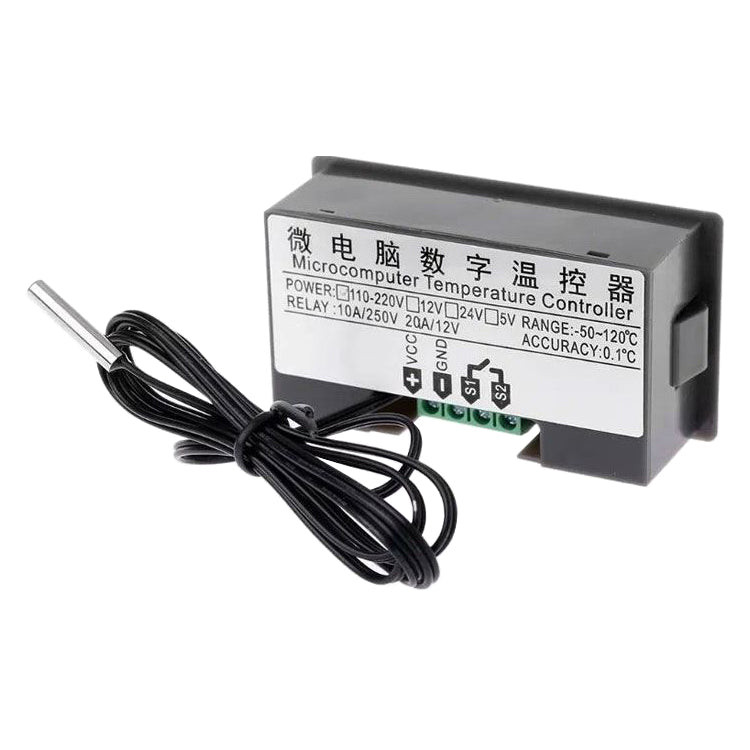

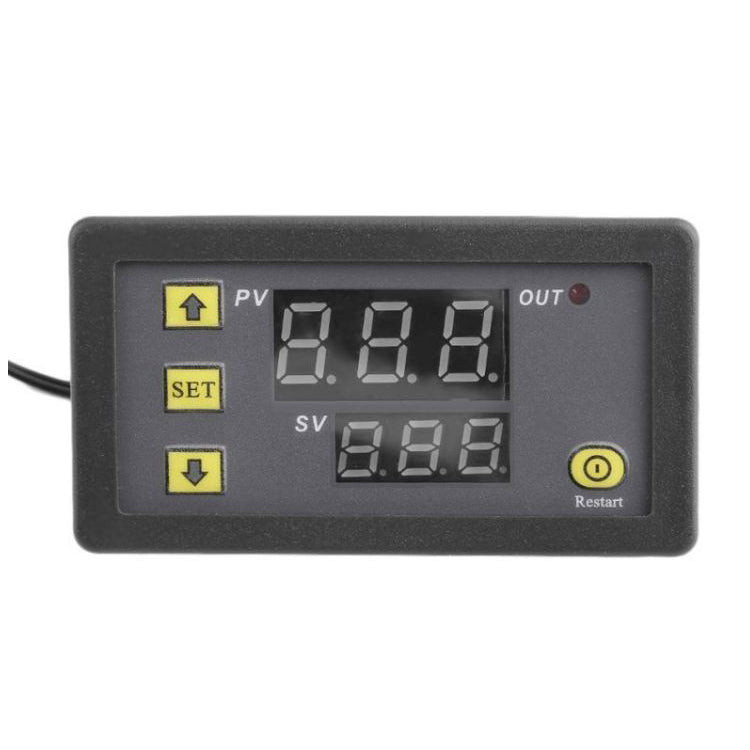

A simple thermostat that displays the set and current temperature. The compact panel case contains buttons on the display. 1m cable with probe.. Technical parameters:. - temperature measurement range: -55 ° C to 120 ° C. - measuring step: 0.1 ° C. - accuracy: 0.1 ° C. - adjustable hysteresis: 0.1°C ~ 30°C. - temperature calibration: –10 ° to + 10 °. - refresh rate: 0.5s. - supply voltage: DC12V / 60mA. - relay switching contact: 250VAC / 10A - resistive load, 3A - inductive load. - measuring element: NTC (10K 0.5%), length 100cm, waterproof thermistor housing. - the thermostat can be operated in cooling mode as well as in heating mode.. - dimensions: 78 × 42 × 25mm, required hole in the panel: 40 × 72mm. Instructions for use:. A short press of the RESTART button turns the thermostat on, a long press turns it off. By briefly pressing the SET button, the desired temperature can be set with the up and down arrows after the display flashes. Additional thermostat functions can be set by long pressing the SET button and then by arrows:. - P0: heating mode (H) or cooling mode ©. - P1: hysteresis setting 0.1 to 30 ° C. - P2: setting of the upper maximum temperature limit. - P3: setting of the lower maximum temperature limit. - P4: temperature correction compared to the temperature sensor -10 to 10 ° C. - P5: time delay 0 to 10 minutes. - P6: Signaling of reaching maximum temperature -50 to 120 ° C (factory off). - P7: Keypad lock. - P8: Factory reset. The product is not a stand-alone unit, it requires professional installation.
