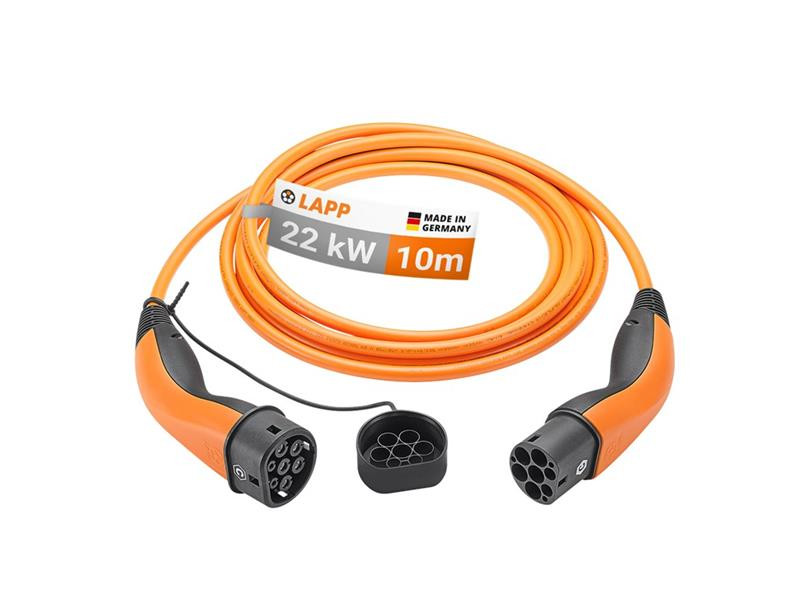

Charging cable LAPP 65311 type 2 22kW 32A 3 phase 10m for electric car

LAPP Type 2 standard charging cables connect your electric vehicle to a charging station, charging pole or wall socket – for easy charging at home or on the go. Simply connect the cable connector to the car and the plug to the power source. The charging process is automatically started and ended by the on-board electronics. LAPP charging cables are suitable for plug-in hybrid vehicles (PHEV) and battery electric vehicles (BEV).

The Type 2 charging cable from LAPP enables easy and fast charging with up to 22 kW at a public or private charging station or wall charging station.

Thanks to the three-phase cable design, the cable charges particularly quickly and supports both three-phase charging with 11 kW and single-phase charging with 7.4 kW and 3.7 kW.

The highly robust vehicle-resistant cables and plugs with silver-plated contacts ensure exceptional durability.

The cover on the connector on the vehicle side protects against dust, dirt and water ingress between charging.

Oil-resistant and longitudinally waterproof charging cable for electric vehicles with high moisture protection according to IP55, operating temperature -40 °C to 50 °C.

The charging cable for electric vehicles Type 2 to Type 2 is space-saving and easy to handle due to its low weight.

Mode 3 charging cable manufactured according to the current IEC and EN standards, compatible with European vehicles and charging stations as well as CCS connectors (Combo 2).

Technical parameters:

Connection:
Connection type: .Type 2 plug (female)
Connection 2, type. plug type 2 male
Power:
up to: 22 kW
Charging mode: Mode 3
Rated voltage: 440 V (AC)
Maximum current capacity: 32 A
Cable:
Cable type: solid cable
Internal conductor cross-section: 6 mm²
Cable length: 10 meters
Cable sheath material: ÖLFLEX®CHARGE
Protection class: IP55
Color: orange
Marking: WEEE, CE
Special features: Silver-plated, corrosion-resistant contacts, ergonomic handle design with hard rubber, VDE certified, VDE certified
Operating temperature from: -40 °C
Operating temperature up to: 50 °C
Weight: 5240g
