Töltő 1-2 Li-Ion cellához 2A védelemmel, modul IO TP5100

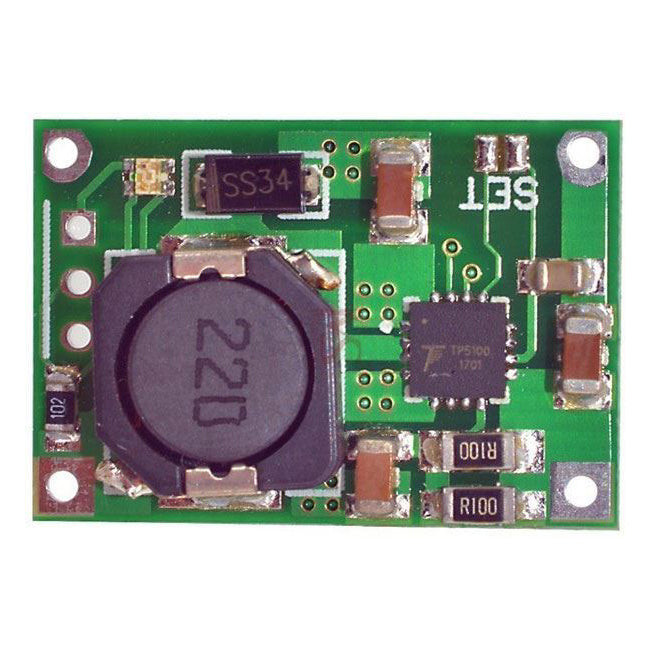

The charger is designed for charging 1-2 lithium cells with a voltage of 3.6V with a constant current of 2A up to a voltage of 4.2 (8.4) V, which it then maintains on the poles of the cell.. Product description:. - constant current charging. By changing the resistance Rprog-viz. The picture in the appendix can change the charging current in the range of 0.5A-2A. - end of charging after reaching the terminal voltage of the cell 4.2V. When using 2 cells in the 8.4V series. In this case, the SET solder pads must be connected.. - reconditioning charging with 100mA current if the cell terminal voltage level is <2.9V. After reaching this voltage, the module charges with a nominal current of 0.5–2A until the terminal voltage of 4.2V is reached. - optical check of charge status. The red LED indicates charging, the blue LED indicates charging is complete. - without overcurrent and short-circuit protection. - selection of 1 or two articulated jumper next to the SET inscription. - possibility to connect external signaling LED -bi color, common anode. Technical parameters:. - IO TP5100, charging method: CC / CV. - input voltage: 5-15V. - charging current 2A (by changing the resistance it is possible to set 0,1A-2A). - end of charging: 4.2V. - reconditioning charging at <2.9V. - dimensions 17 × 25mm / 2g. The product is not a stand-alone unit, it requires professional installation.
