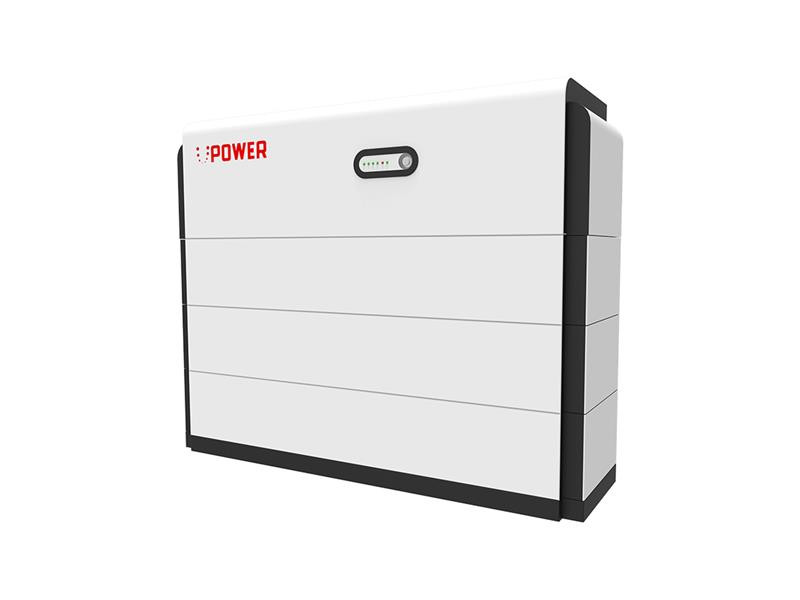

Battery module UHB1024 with BMS 10,24 kWh

The UHB1024 battery system consists of four high-voltage batteries and a BMS control unit designed specifically for use with the Geti GF-I10H3 hybrid three-phase inverter.

The BMS module works with the PYLONTECH HV (high voltage) communication protocol, and can be used with other brands of inverters.

The assembly includes:
3x SLAVE battery module 2,56 kWh
1x MASTER battery module with BMS 2,56 kWh
1x base

Product parameters:

- complete battery system including control unit
- high capacity 10.24 kWh
- intelligent operation control through communication with the inverter
- easy connection and commissioning
- narrow space-saving design


Technical parameters

- Number of batteries: 4
- rated capacity: 10.24 kWh / 50 Ah
- usable capacity: 9.2 kWh / 45 Ah
- rated voltage: 204.8V DC
- Voltage range: 179.2 - 230.4 V DC
- Battery type: Li-ion (LFP)
- Charging current: 25 A standard / 50 A maximum
- Discharge current: 25 A standard / 50 A maximum
- Lifetime: more than 6000 cycles at 80% discharge (capacity >70%)
- communication: RS-485 / RS-232 / CAN 2.0
- Protection against: overvoltage, undervoltage, overheating, hypothermia, overcurrent, short circuit
- working environment: indoor
- ambient temperature for charging: 0 to +55°C (cannot be charged in freezing weather!)
- ambient temperature for discharging: -20 to +55°C
- storage temperature: -20 to +55°C
- optimum operating temperature: +20 to +30°C
- air humidity: 5 to 95% (no condensation)
- altitude: ≤ 2000 m
- cooling: air flow (passive)
- Certification: CE, UN38.3, MSDS
- Dimensions: 844 x 255 x 575 mm
- weight: 128 kg
