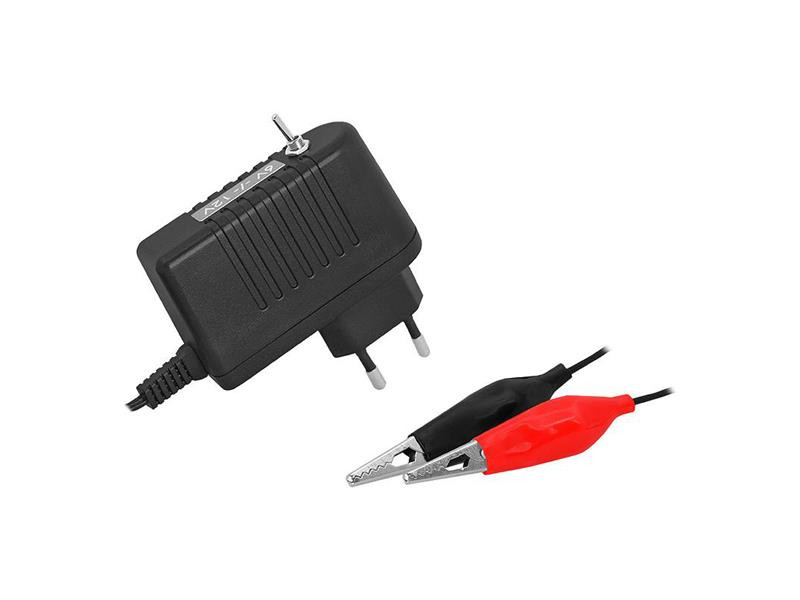

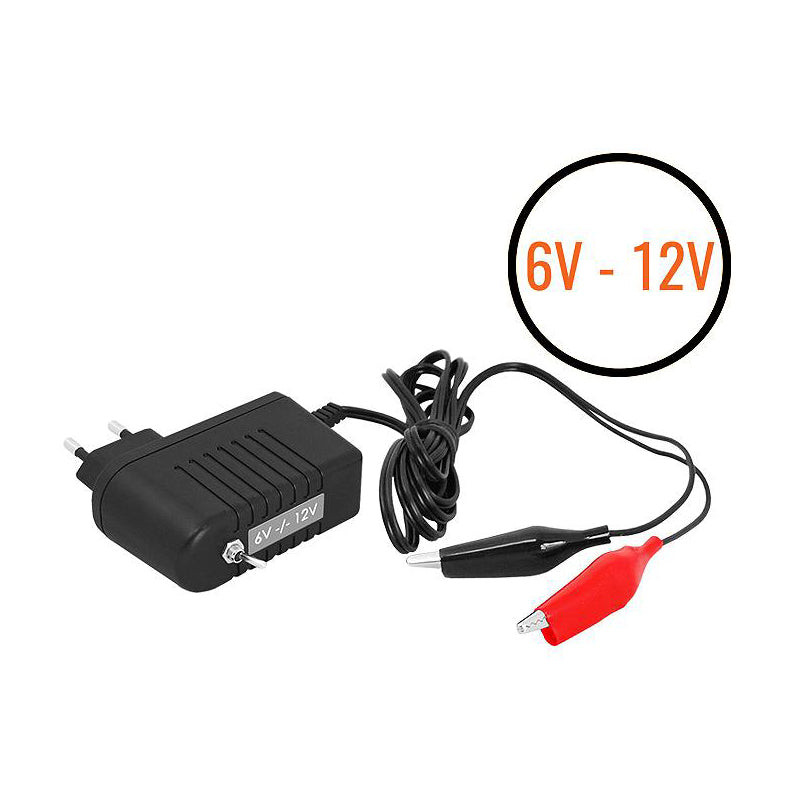

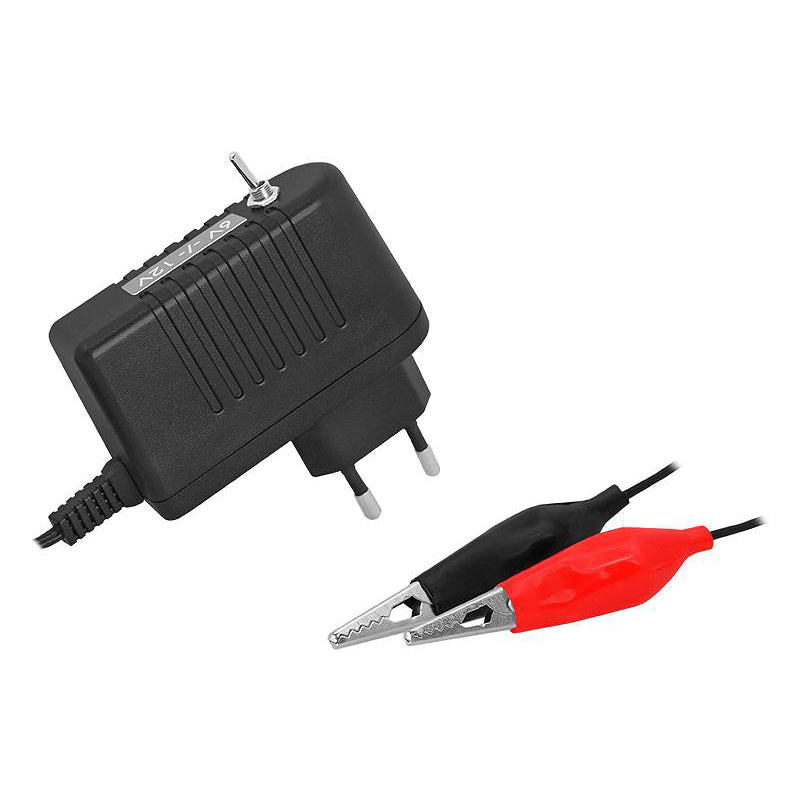

Battery charger LTC LXB420 6/12V 750mAh for batteries 3-9Ah

This charger is used for charging lead-acid batteries with a built-in short-circuit and overload protection.

Properties:

- LED indication of charging status
- Output voltage: 7.2V DC / 14V DC
- Maximum output current: 750 mA
- Rated output current: 650 mA
- Input voltage: 230VAC
- Maximum input current: 100 mA
- Maximum power: 5.5W
- Current limitation: 750 mA
- Overload protection
- Short circuit protection
- Overvoltage protection
- Class II protection (double insulation)
- MTBF 30,000 hours
- Operating temperature: 0 .... 40 degrees C
- Storage temperature: -20 .... 85 degrees C
- Cable length: 1.5m
- Dimensions: 77x30x82mm
- Weight: 140g
