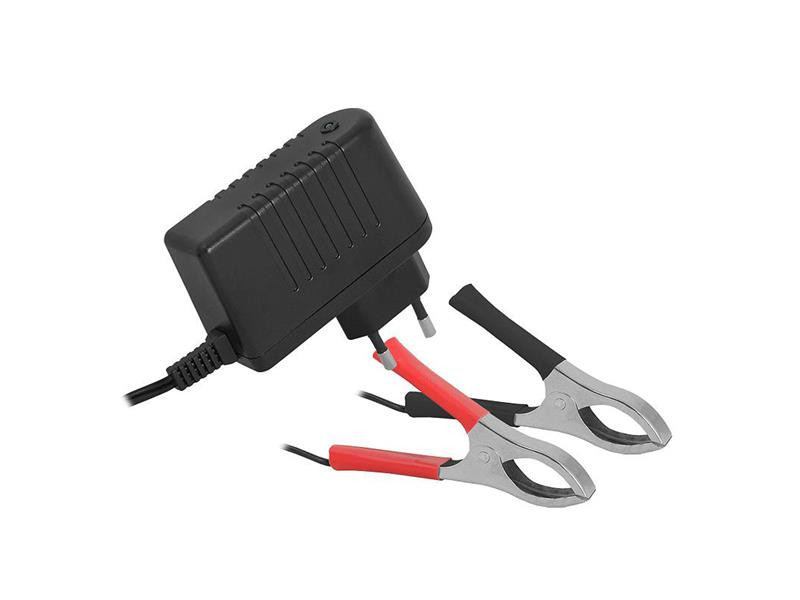

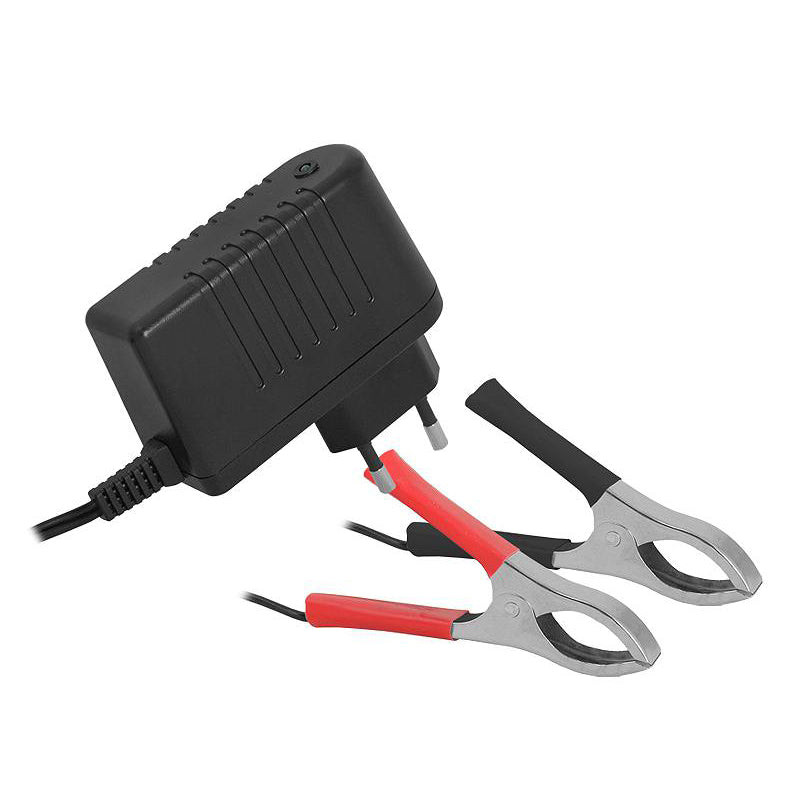

Battery charger LTC LXB411 12V 1500mAh for batteries 7-50Ah

This charger is used for charging lead-acid batteries with a built-in short-circuit and overload protection.

Properties:

- LED indication of charging status
- Output voltage: 14.4V DC
- Maximum output current: 1500 mA
- Rated output current: 1500 mA
- Input voltage: 230VAC
- Maximum input current: 200 mA
- Maximum power: 22W
- Current limitation: 1550 mA
- Overload protection
- Short circuit protection
- Overvoltage protection
- Class II protection (double insulation)
- MTBF 30,000 hours
- Operating temperature: 0 .... 40 degrees C
- Storage temperature: -20 .... 85 degrees C
- Cable length: 1.5m
- Dimensions: 77x30x90mm
- Weight: 160g
