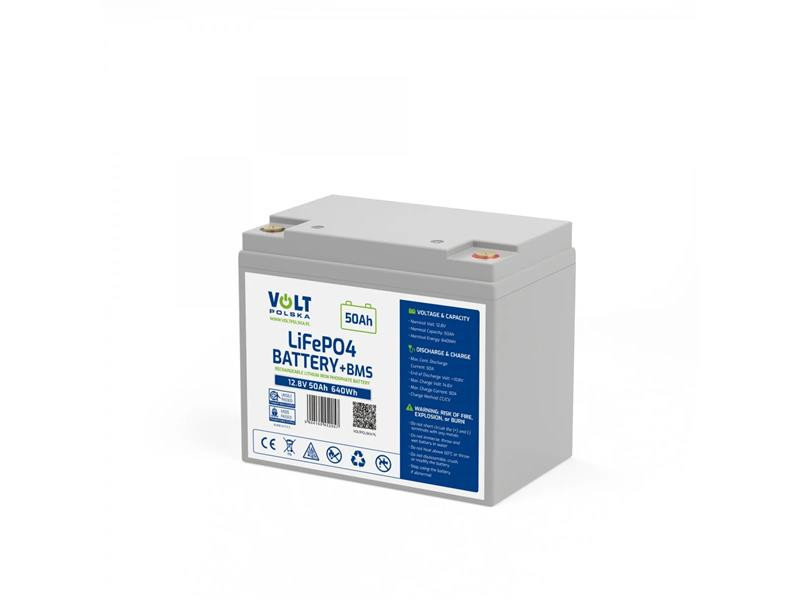

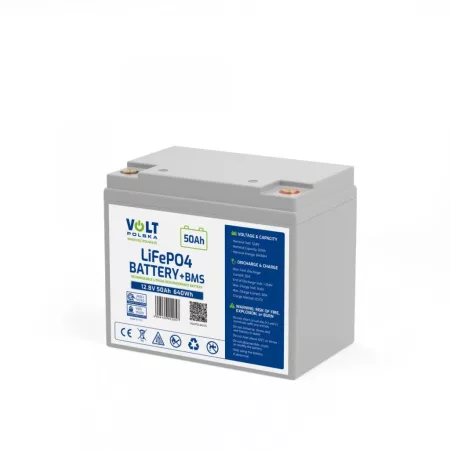

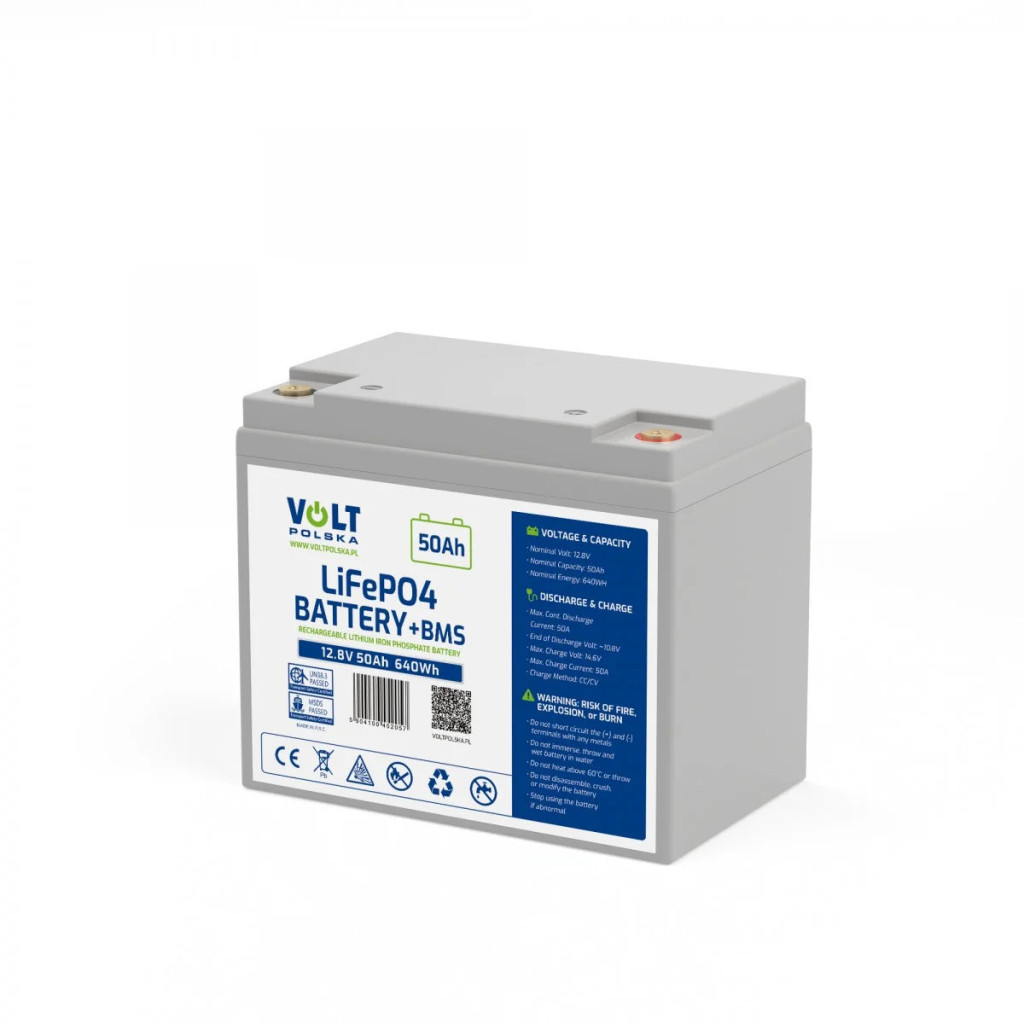

Battery LiFePO4 12,8V 50Ah VOLT

LiFePO₄ (lithium iron phosphate) batteries with built-in BMS are characterized by their very low weight and high number of operating cycles - their lifetime is approximately 6000 cycles at DoD 60% .

The high cyclability and very low self-discharge make LiFePO₄ batteries ideal for both emergency power systems and off-grid installations.
Its low weight allows its use in mobile installations - in vehicles (caravans, food trucks) and boats.
The built-in BMS system controls the charging and discharging processes and allows long-term storage without loss of rated capacity.

USES OF THE LiFePO₄ BATTERY

Emergency power systems
Off-grid installation
Vehicle installation - caravans, food trucks
Boat wiring - power electronic equipment, lighting, household appliances ️ only using hermetic battery cover

IMPORTANT INFORMATION AND RECOMMENDATIONS

When using a LiFePO₄ battery to power electric motor equipment (e.g. propeller motors), it is mandatory to use a DC fuse on the (+) circuit of the battery - with a value no greater than the maximum load current indicated on the cover.

Loading the battery with a starting current that can be up to 5-10 times the rated operating current (e.g. motors, compressors, refrigerators, air conditioners) can cause permanent damage to the LiFePO₄ battery with BMS , which is not covered by the warranty.

Only charge the battery with a charger designed for LiFePO₄ batteries

TECHNICAL DATA
Rated voltage:
12,8 V
Rated capacity:
50AH
Voltage range:
10.8V ~ 14.4V
Maximum charging current:
50A
Maximum discharge current:
50A
Lifetime:
3000 cycles (100% DoD)
Lifetime:
4500 cycles (80% DoD)
Lifetime:
6000 cycles (60% DoD)
Height:
170mm
Width:
165mm
Length:
197mm
Scales:
5.6 kg +/- 3%
