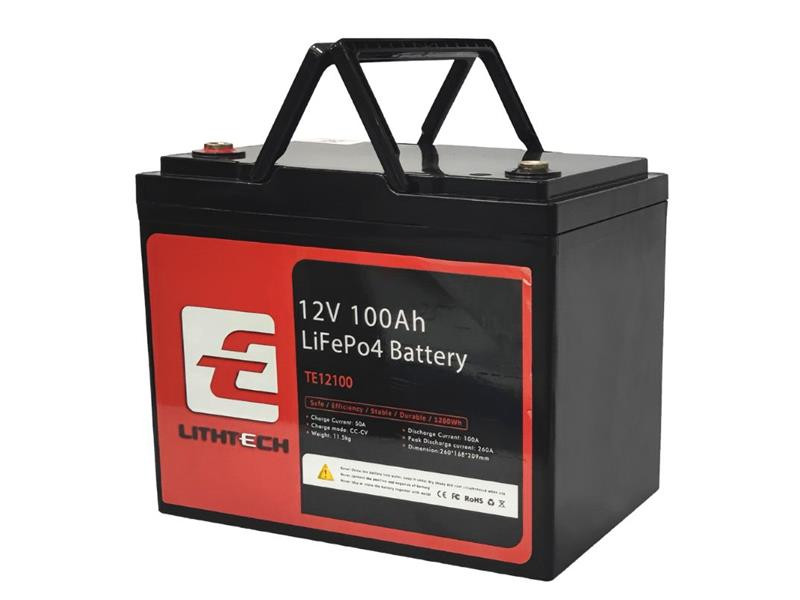

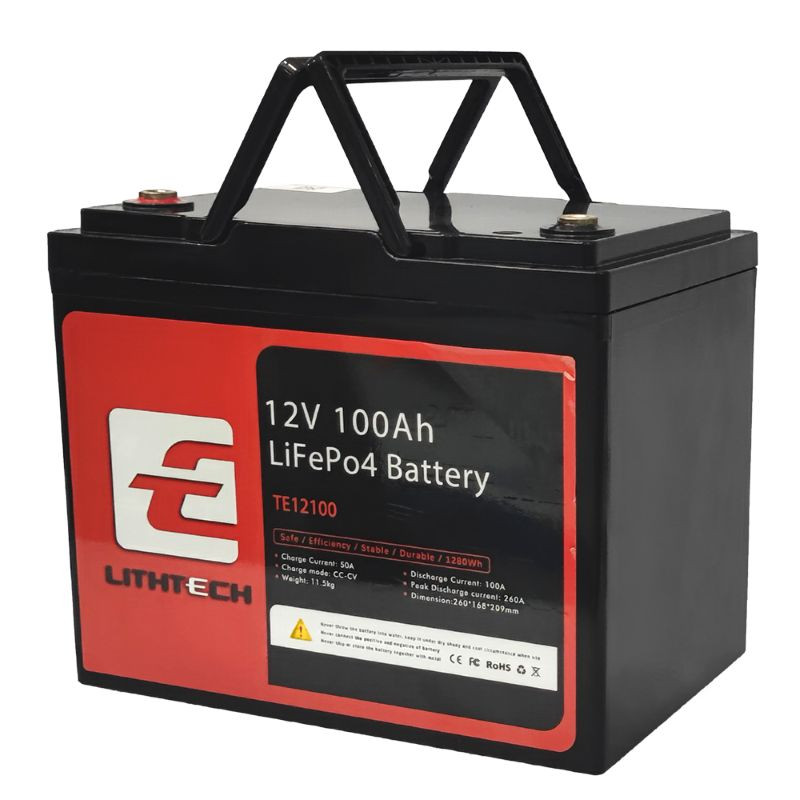

Battery LiFePO4 12,8V 100Ah TE12100 LITHTECH Bluetooth, BMS, IP67

The Lithtech TE12100 LiFePO4 battery is designed for solar systems, caravans, boats, recreational vehicles, scooters and other applications that require frequent and deep discharges. It is a modern, lightweight and powerful battery with a built-in BMS (Battery Management System) that not only provides fast charging with guaranteed long life, but also protects the battery from overcharging, over-discharging or short-circuiting. This makes it an ideal replacement for lead-acid batteries with a multiply longer life (up to 6000 cycles) at a lower weight. The LiFePO4 battery is an eco-friendly choice that offers long-term cost savings and environmental friendliness.

Main product parameters

- Integrated BMS with protection and charge/discharge control
- Automatic cell balancing (Auto-Balance)
- Up to 4 batteries can be connected in series and unlimited in parallel
- Vibration-resistant construction (ABS housing)
- low weight of only 9.6 kg
- maintenance-free operation and easy replacement of lead-acid batteries
- long service life and high operational safety

Technical parameters

- rated voltage: 12.8 V
- capacity: 100 Ah
- energy: 1280 Wh
- Maximum charging current: 100 A
- Maximum discharge current: 100 A (peak 110 A / 10 s)
- Recommended charging voltage: 14.2-14.6 V
- internal resistance: ≤ 30 mΩ
- self-discharge: ≤ 3.5%/month
- dimensions: 260 × 168 × 209 mm
- weight: 9.6 kg
- protection: IP67
- operating temperature (discharge): -20 to +60 °C
- Operating temperature (charging): 0 to +55 °C
- cell type: prismatic

Batteries can be arranged in series and parallel - 4 in series and 4 in parallel (max.)

Packing: 1pc
