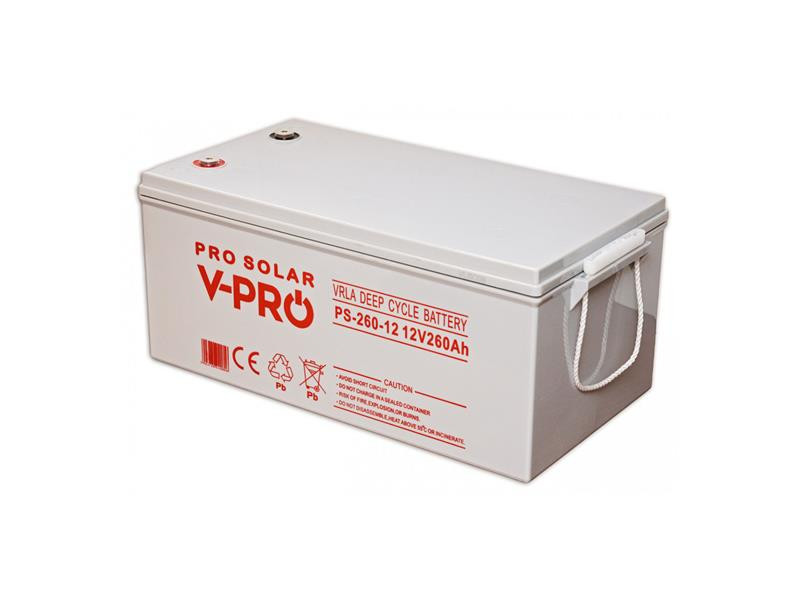

Battery 12V 260Ah V-PRO SOLAR DEEP CYCLE

ATTENTION: Due to its weight, this product is classified as oversized goods for which special transport must be arranged. Therefore, the delivery time can be extended to 3-4 days.

The battery of the DEEP CYCLE series is intended, among other things, for: powering solar and wind energy systems, motorhomes, emergency power systems (UPS sources, automation). It is designed and engineered to be deeply discharged before being recharged.

- It has a reinforced structure with lead plates, high density active materials and a slightly stronger electrolyte than standard batteries. This allows it to be used in applications where it works cyclically
- Automatic sealing system. When the pressure inside the accumulator gets too high, the valves open, causing the resulting gas to be safely vented outside the enclosure, preventing damage. This situation occurs when the battery is overcharged
- Battery housing made of ABS material, copper cells

What devices do DEEP CYCLE batteries power?

- Solar and wind energy system
- Emergency power system
- Communication device
- Telecommunication systems
- Uninterruptible power supplies
- Wheelchair
- Electric tools
- Golf cars
- Buggy off-road vehicles
- Marine equipment (using hermetic battery case)
- Medical equipment

Why use a DEEP CYCLE battery?

- Perfect regeneration after deep discharge
- Long service life - up to 10 years when operating at a temperature of 25°C
- High resistance to mechanical damage and high temperatures
- Maintenance-free – it is not necessary to top up or replace the electrolyte
- Safe use (no electrolyte leakage, pressure valves)

Technical parameters:

- Nominal voltage: 12V
- Nominal capacity: 260Ah
- Total height: 226 mm
- Height: 218 mm
- Width: 268 mm
- Length: 522 mm
- Weight: 66 kg (145.5 Ibs) ± 3%
- Capacity (at 25°C) 20h (10.2V): 260Ah
- Capacity (at 25°C) 10h (10.5V): 250Ah
- Capacity (at 25°C) 3h (10.2V): 187.5 Ah
- Capacity (at 25°C) 1h (9.6V): 150Ah
- Internal resistance (at 25°C): 3mΩ
- Capacity: (40°C): 102%
- Capacity (25°C): 100%
- Capacity (0°C): 85%
- Capacity (-15°C): 65%
- Self-discharge (25°C) 3 months: 91% of nominal capacity
- Self-discharge (25°C) 6 months: 82% of nominal capacity
- Self-discharge (25°C) 12 months: 64% of nominal capacity
- Recommended operating temperature: 25 °C ± 3 °C
- Operating temperature range - discharge: -15 °C to 50 °C
- Operating temperature range - charging: -10 °C to 50 °C
- Operating temperature range - storage: -20 °C to 50 °C
- Equalizing charging voltage (25°C): 13.5VDC-13.8VDC
- Cyclic charging voltage (25°C): 14.4VDC-14.7VDC
- Maximum charging current: 75A
- Maximum discharge current: 1500A
- Design life (25°C): 8-10 years
