Balcony PV 800 W with smart meter (without overflow)

An economical and safe solution for generating your own electricity, unlike cheap kits, it includes a smart meter that actively prevents overflows into the grid.

The complete 800W balcony photovoltaic power plant is the ideal solution for apartments and smaller households looking to reduce electricity costs without complicated installation. The system uses a pair of powerful panels with a total output of 770 Wp and a modern microinverter with a function to limit overflows to the grid.
Thanks to smart power generation control, the system automatically adjusts power output to the household's current consumption, minimizing grid overflows and maximizing the actual use of the electricity produced.

Key benefits:
Power output up to 800 W - ideal for balcony installations
Reduction of overflows to the grid thanks to the smart meter
Plug & play solution - plugged into a wall socket or hardwired
Monitoring via mobile app (Smart Life / Tuya)
Safe operation - anti-islanding protection
High efficiency up to 96% + MPPT optimization
IP67 resistance - also suitable for outdoor use
Adjustable panel inclination (10-30°)

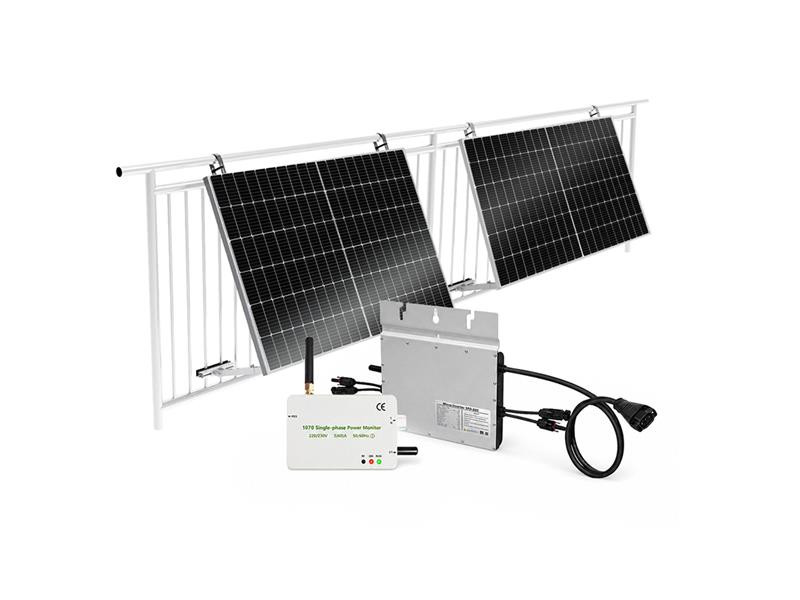

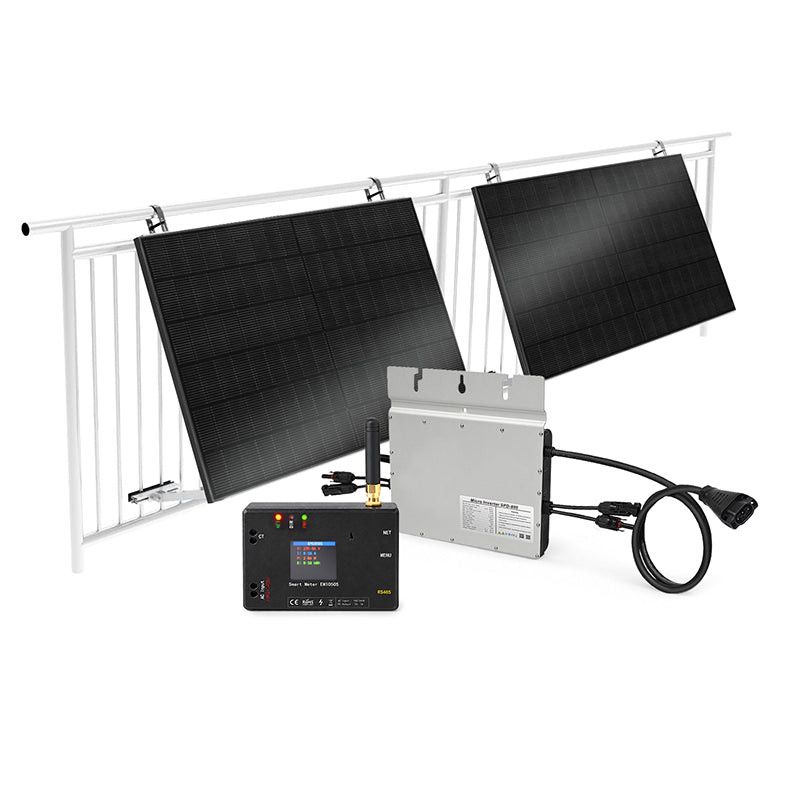

Kit includes:

Microinverter 800 W + smart electricity meter
The modern microinverter converts the DC current from the panels to AC (230 V), which can be used immediately in the home. Thanks to MPPT technology, it optimizes the performance of each panel separately. It also includes a smart meter that monitors consumption in real time, regulates power and limits overflows, and allows remote monitoring via Wi-Fi. Safety is ensured by surge and undervoltage protection and automatic disconnection in the event of a grid failure.

385 Wp JA Solar Panel (2 pcs)
High quality mono-crystalline panels with PERC + half-cell + multi-busbar technology, which have higher efficiency (up to 21%), better performance in partial shading without the risk of overheating (hot-spot). Robust construction with black aluminium frame ensures long life and aesthetic appearance.

Balcony brackets (2 pcs)
Practical mounting system allows installation on the balustrade without interference with the building structure. It has an adjustable inclination of 10-30°, can also be mounted vertically (0°), durable aluminium construction.


Technical parameters:

Microinverter + smart meter against overflows

Power: 800 W
2× MPPT input (max. 500 W per input)
Efficiency up to 96%
Output: 230 V / 50 Hz
Wi-Fi monitoring

Panels:

Power: 2× 385 Wp (total 770 Wp)
Efficiency: up to 21%
Dimension: approx. 1769 × 1052 mm

Smart control

With the Smart Life (Tuya) mobile app you can:

monitor production and consumption
control system performance
set power limits
Manage your equipment remotely

Ideal for apartments with balconies and smaller households, reducing consumption from the grid, allowing self-generation of electricity without complicated installation.

Important information
Installation of the device and wiring should be carried out by a person with the appropriate electrical qualifications.
When connecting to the distribution network, it is necessary to follow the requirements of the operator (e.g. ČEZ, PRE, EG.D).
