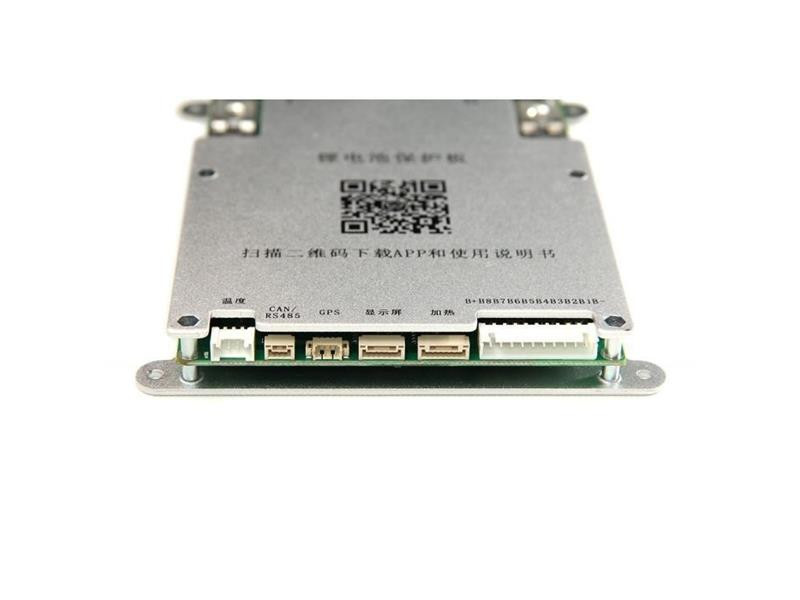

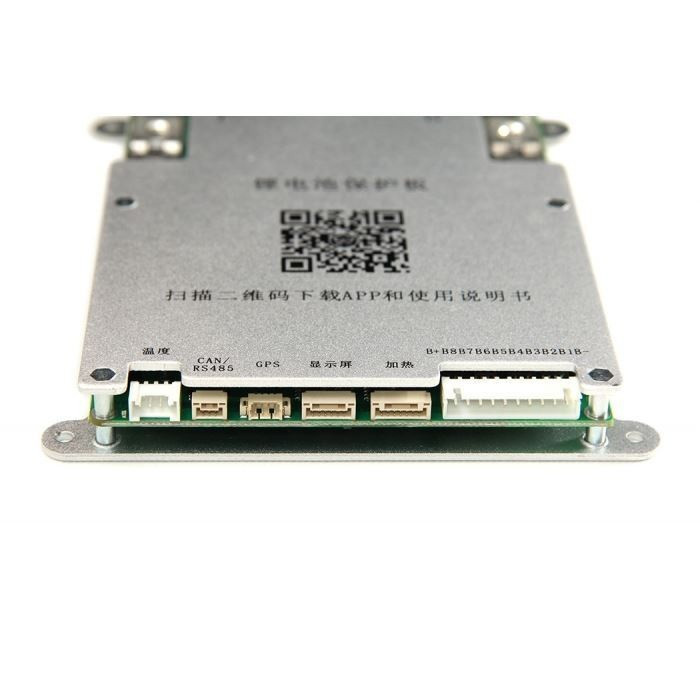

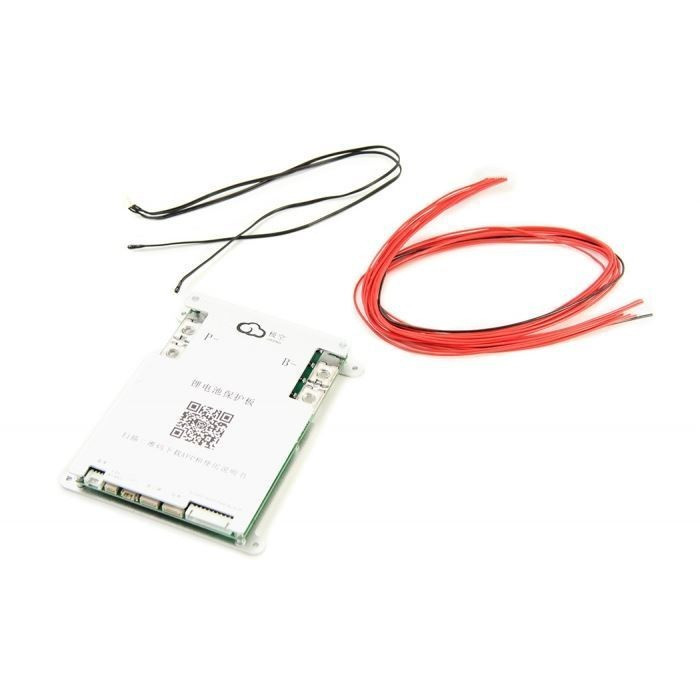

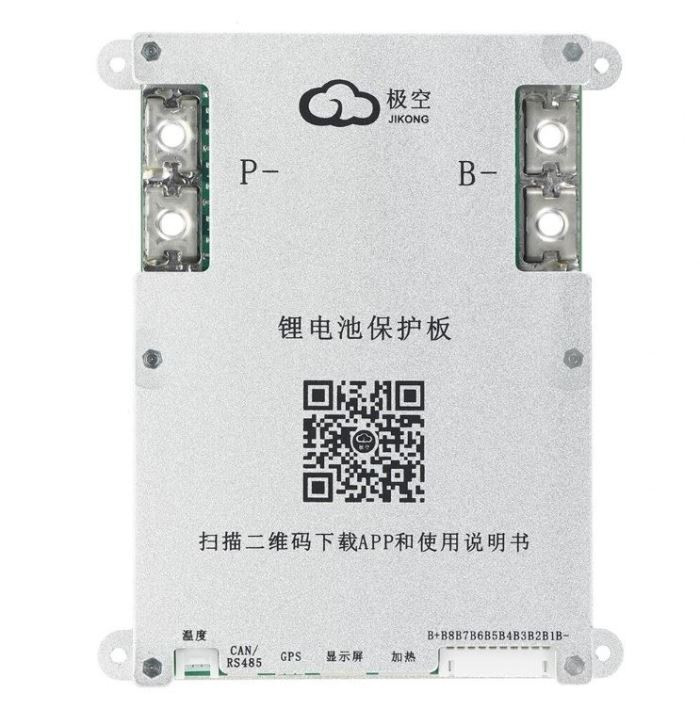

BMS with 1A active balancer SMART 4S-8S 200A LiFePO4 - 3.2V JIKONG

This BMS with active balancer, JIKONG 4-8S 200A, is a first-class management system for high-capacity LiFEPO4 and Li-Ion batteries. It is compact, easy to control via Bluetooth (built-in) via a mobile application (Android, iOS). It monitors the battery status, allows you to adjust the parameters of battery discharge and charge.

This intelligent active balancer system offers a wide range of functions including voltage control, active equalization of larger currents, protection against overcharging, overloading, discharging and temperature, coulometry, Bluetooth communication, remote monitoring via GPS and much more.

It is compatible with LiFePo4 and Li-Ion batteries. Thanks to active equalization technology, it can achieve a maximum continuous equalization current of 1A. This high-current active equalization technology ensures battery consistency, extends their life and maximally inhibits aging.

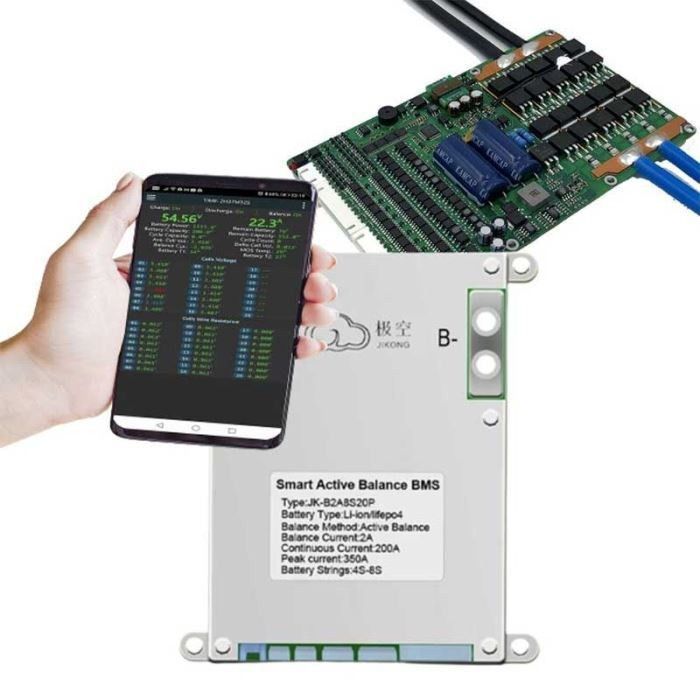

The balancer is complemented by a mobile application that supports both Android and iOS operating systems. This application connects via Bluetooth (built-in) and allows you to monitor the battery status, adjust various operating parameters, control the charge and discharge switches and much more.

Technical parameters:

Type: B1 A8S20P
Number of cells in series: 4s-8s
Balancing current: 1A
Max. discharge current: 200Ah
Communication: Bluetooth, RS485, CAN
Dimensions: 153×136×18mm
Battery type: Li-ion, Lifepo4, LTO
Temperature sensors: 2pcs

Application for download: https://www.jkbms.com/support/The default password for the device is 1234
The default password for setting parameters is 123456

The product is not a separate functional unit, it requires professional assembly.
